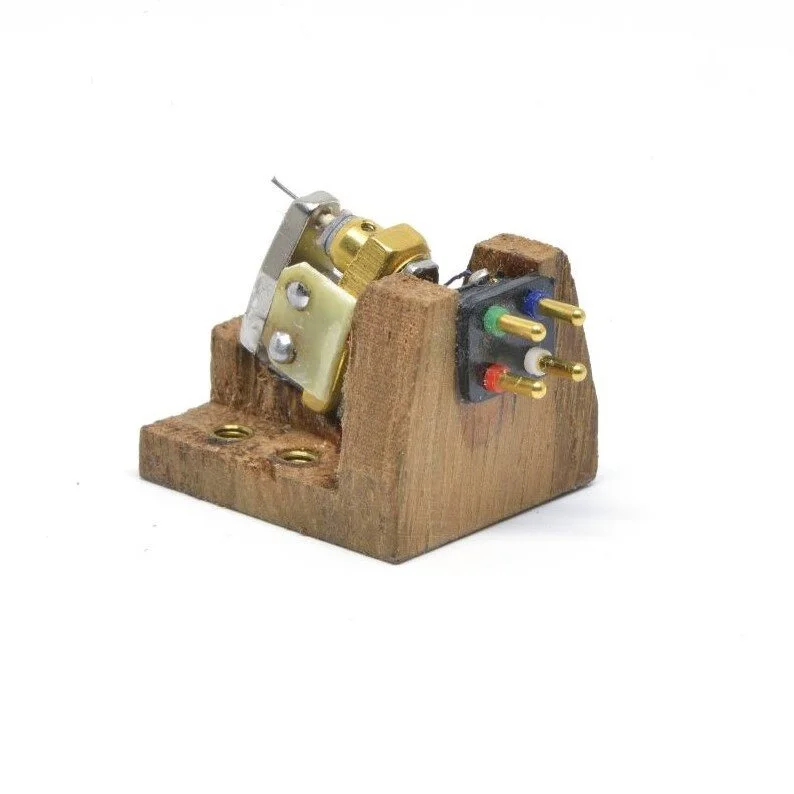

Van Den Hul The Crimson XGA
The Crimson is a top performance custom handbuilt moving coil phono cartridge. This is the result of a crossbreed of our models “The Canary” and “The Condor”.
The Crimson is a top performance custom handbuilt moving coil phono cartridge. This is the result of a crossbreed of our models “The Canary” and “The Condor”.
The Crimson is a top performance custom handbuilt moving coil phono cartridge. This is the result of a crossbreed of our models “The Canary” and “The Condor”.
PRODUCT DETAILS
Version- XGW: wooden body / XGP: polycarbonate body
Stylus replacement- stylus replacement and services available on request
Stylus shape- VDH 1S
Stylus radii- 2 x 85 Micron
Frequency range- 5 – 55.000 Hz
Tracking force- 1,4 – 1,6 Gr
Static compliance- 35 Micron/mN
Tracking ability- 70 – 80 Micron
Output voltage- 0,65mV
Channel unbalance- < 0.3 dB
Channel separation- > 36 / > 30 dB
Stylus tip mass- 0.32 Milligram
System weight- 8,75 Gr
Load capacitance- Non-critical
Load impedance- 25 Ohm – 200 Ohm
Eff tonearm mass- 10 – 16 Gr
Moving coil resistance- 13,0 Ohm
