Sugden DAC-4
The DAC-4 offers a well judged alternative to the plethora of other DAC’s available in the current market. With sound quality top of the list, our watchword ‘Rescuing music from technology’ could not be more appropriate. Instead of accepting and using the latest digital trends, we have produced a product meticulously engineered to play music.
PRODUCT DETAILS
Technical Specifications

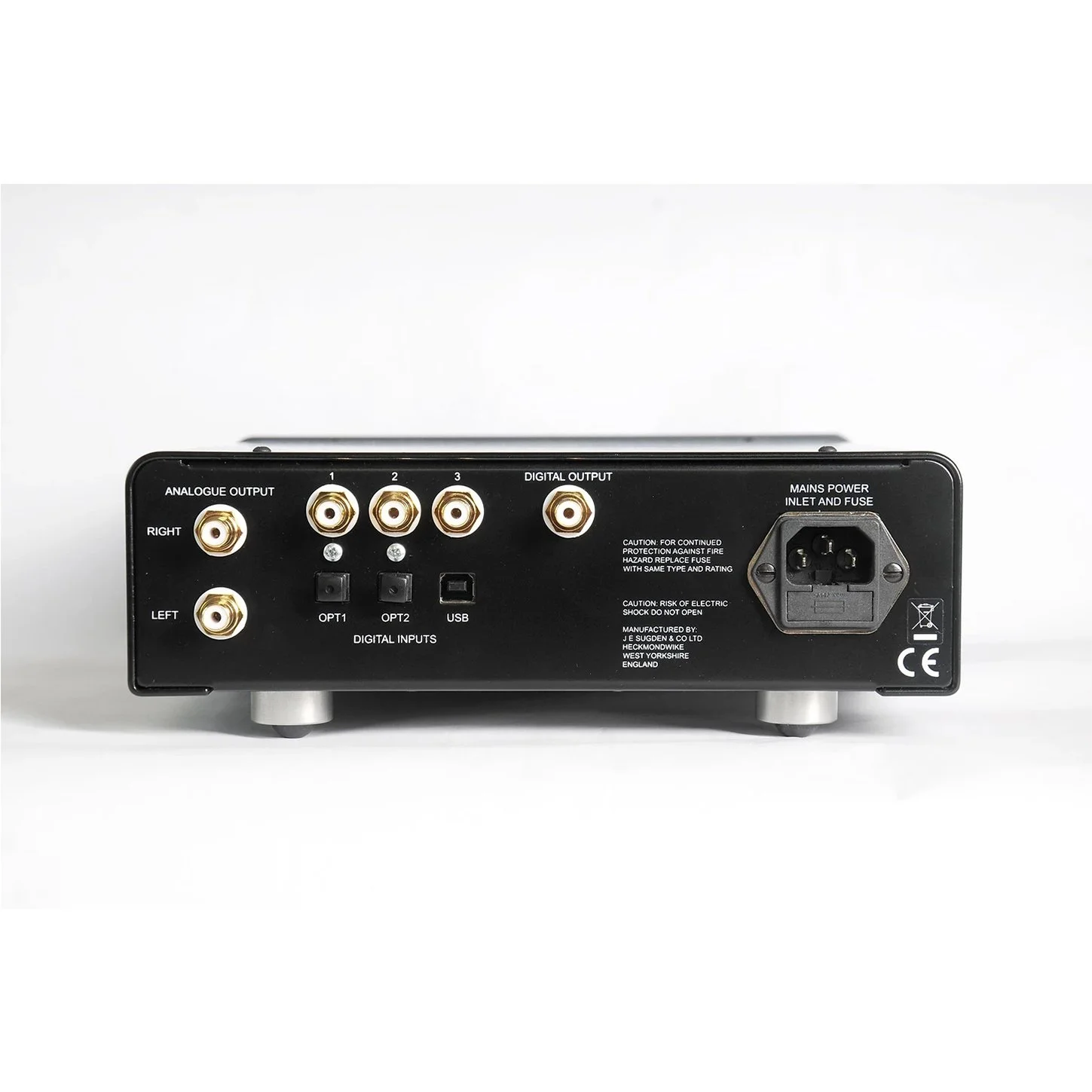

Inputs- Three SPDIF coaxial, two SPDIF optical, One USB type B, Mains IEC socket
Outputs-
One RCA stereo analogue
One digital coaxial
Front Panel Controls- Power switch, power lamp, input selector switch, digital lock lamp
Output- 2.15 Volts
Frequency Response- 20Hz-20kHz +/- 1.5dB points
Signal to Noise- >80dB
Physical Specifications
Gross Weight (packed)- 5kgs
Dimensions- 90 x 250 x 330mm (hwd)
Digital Input- SPDIF 16-24 bit word length, with sample rates from 32 to 96kHz
Power Consumption- 12 Watts
