PRODUCT DETAILS

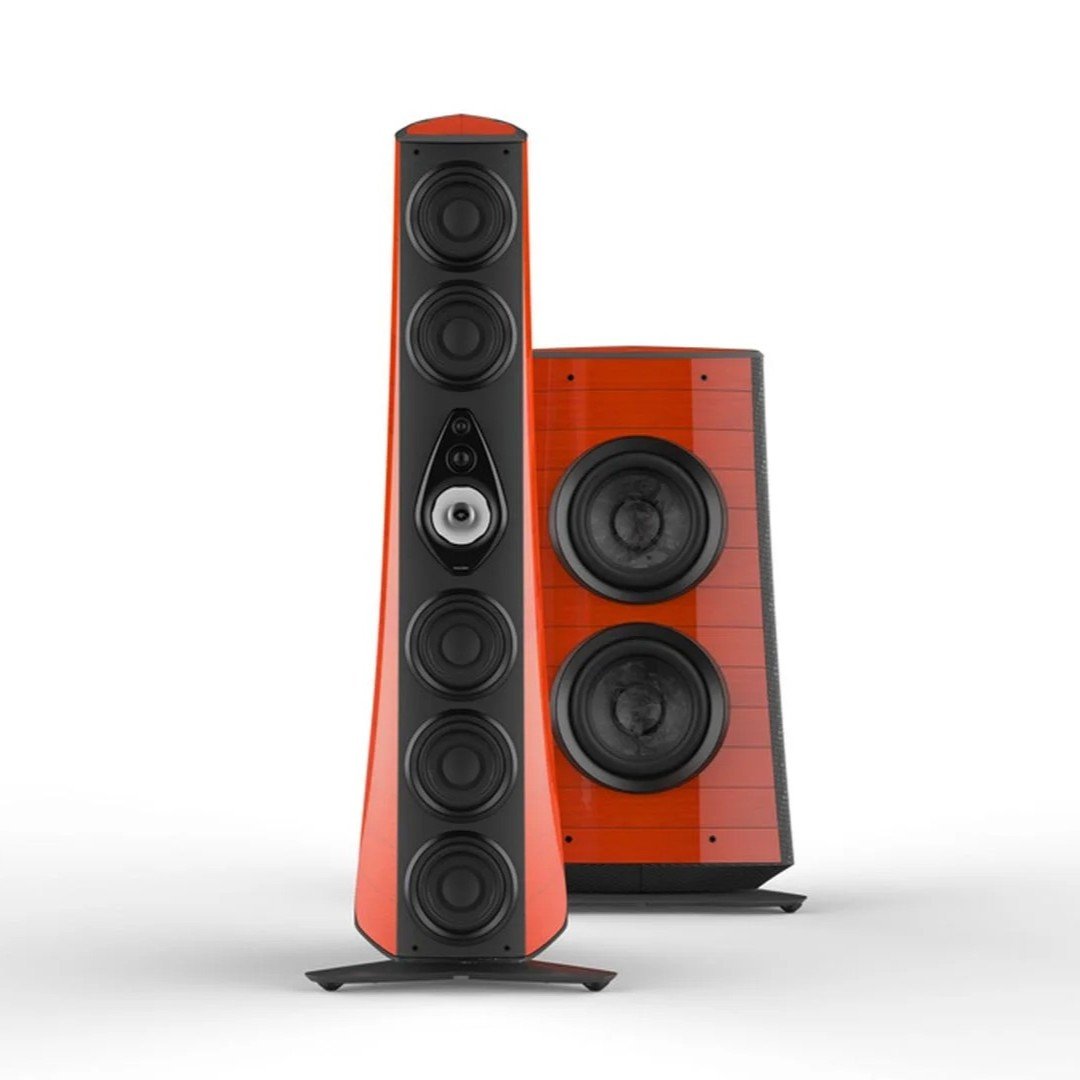

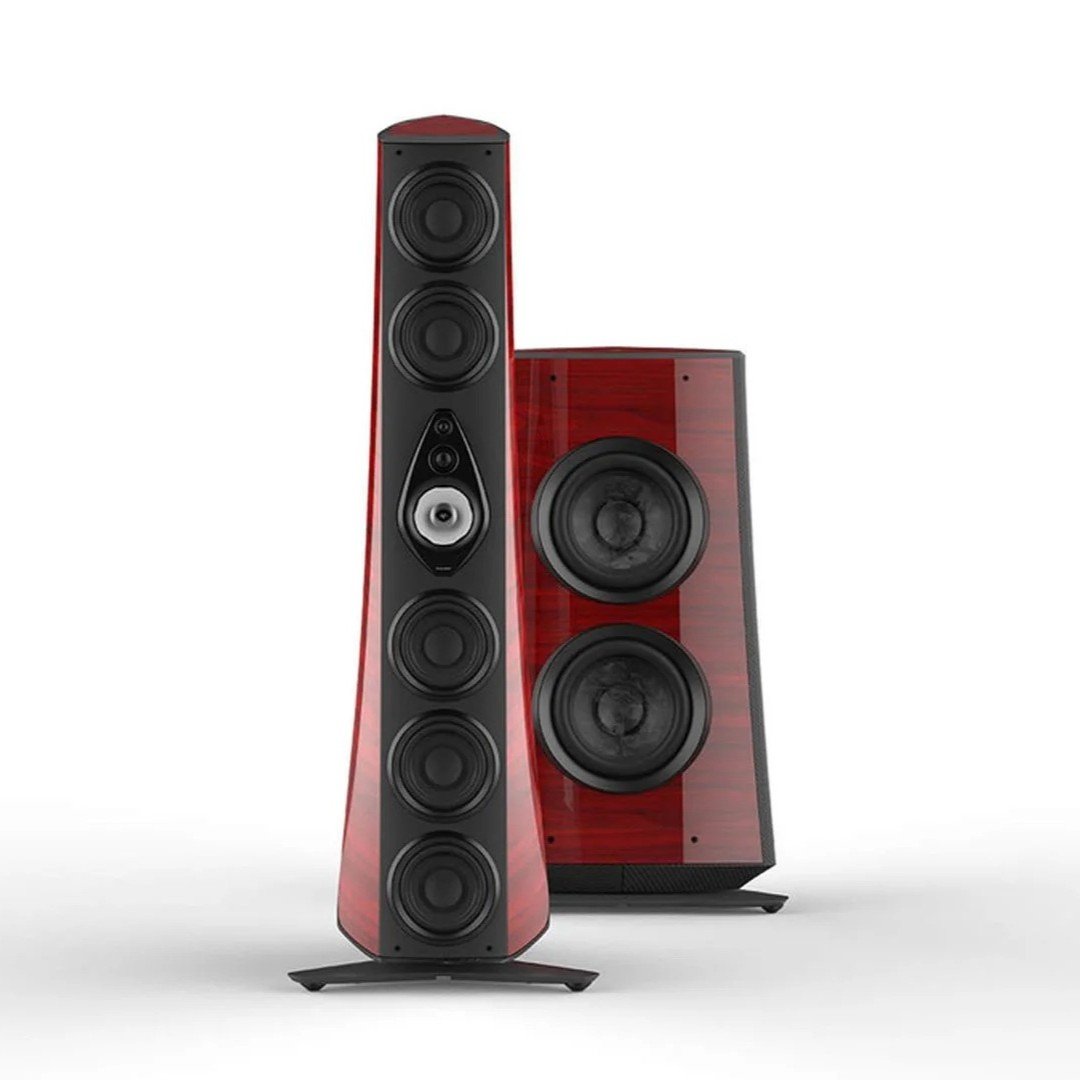

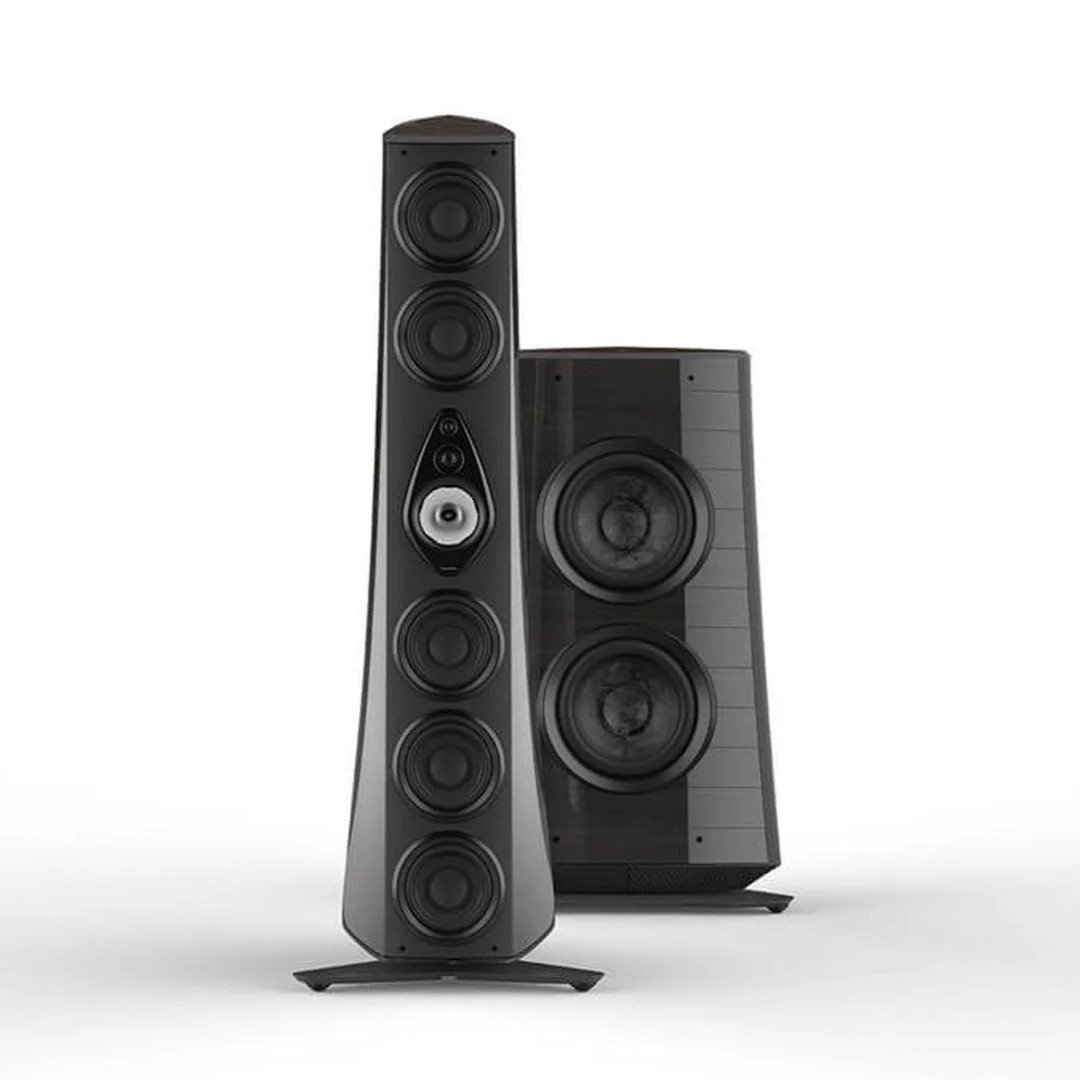

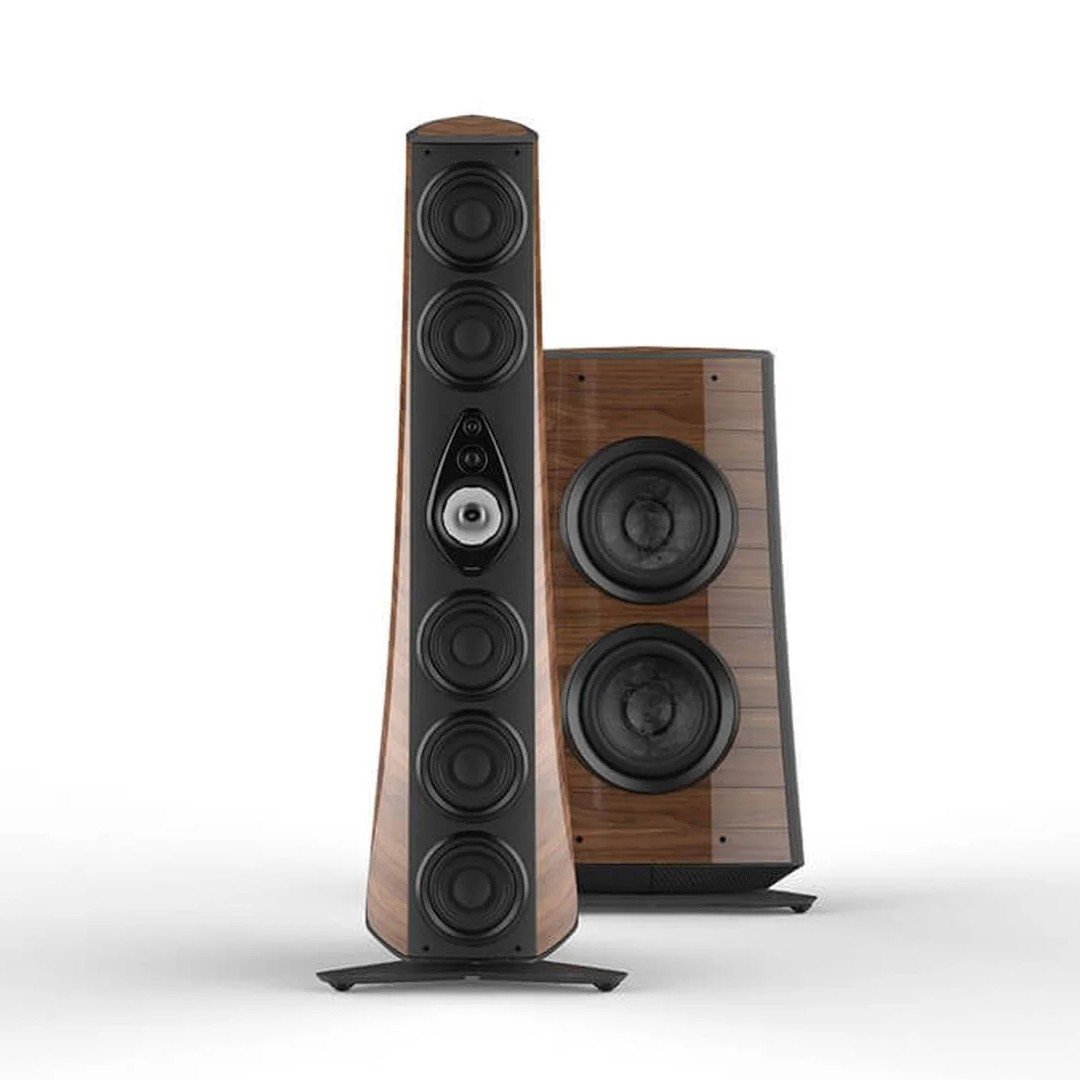

MAIN COLUMN
System- 4.5 way sealed box
Loudspeaker Super Tweeter- 20mm silk dome with dedicated waveguide, neodymium magnet
Tweeter- 38mm silk dome with dedicated waveguide, neodymium magnet
Midrange- 6.5” dual driver motor system with neodymium ring magnet,
Link Midwoofer- 8” neodymium slug magnet, Ø 65mm voice coil, sandwich paper cone
Woofer- 4 x 8” dual driver motor system with neodymium ring magnet, Ø 50mm voice coil, sandwich paper cone
Back Emission TW- 28mm silk dome, neodymium magnet
Back Emission MD- 4” paper cone driver, neodymium magnet
Crossover-
Front emission: 360, 430, 1700, 6700 Hz
Back emission: 500, 2300 Hz
Frequency response-
Front emission: 45Hz – 40KHz
Back emission: 500Hz – 20KHz
Sensitivity- 91dB 1m/2.83V
Nominal Impedance- 4 Ohm
Recommended Amplifier Power-100 W – 700 W
Dimensions (H X W X D)-
75” x 25.6” x 65”
1905mm x 650mm x 880mm
Weight-
110 kg
242,5 lb
SUBWOOFER SYSTEM
Sealed box loading, passive subwoofer\
Loudspeaker Woofer-: 2 x 38 cm carbon fiber sandwich cone
Frequency Response- 16 to 30/80 Hz -variable based on the setting of the electronic crossover
Sensitivity- 92dB 1m/2.83V
Nominal Impedance- 4 Ohm
Recommended Amplifier Power- 500 W – 2000 W
Dimensions (H X W X D)-
57,1 x 33,46 x 23,42 in
1451 x 850 x 595 mm
Weight-
103kg
227 lb

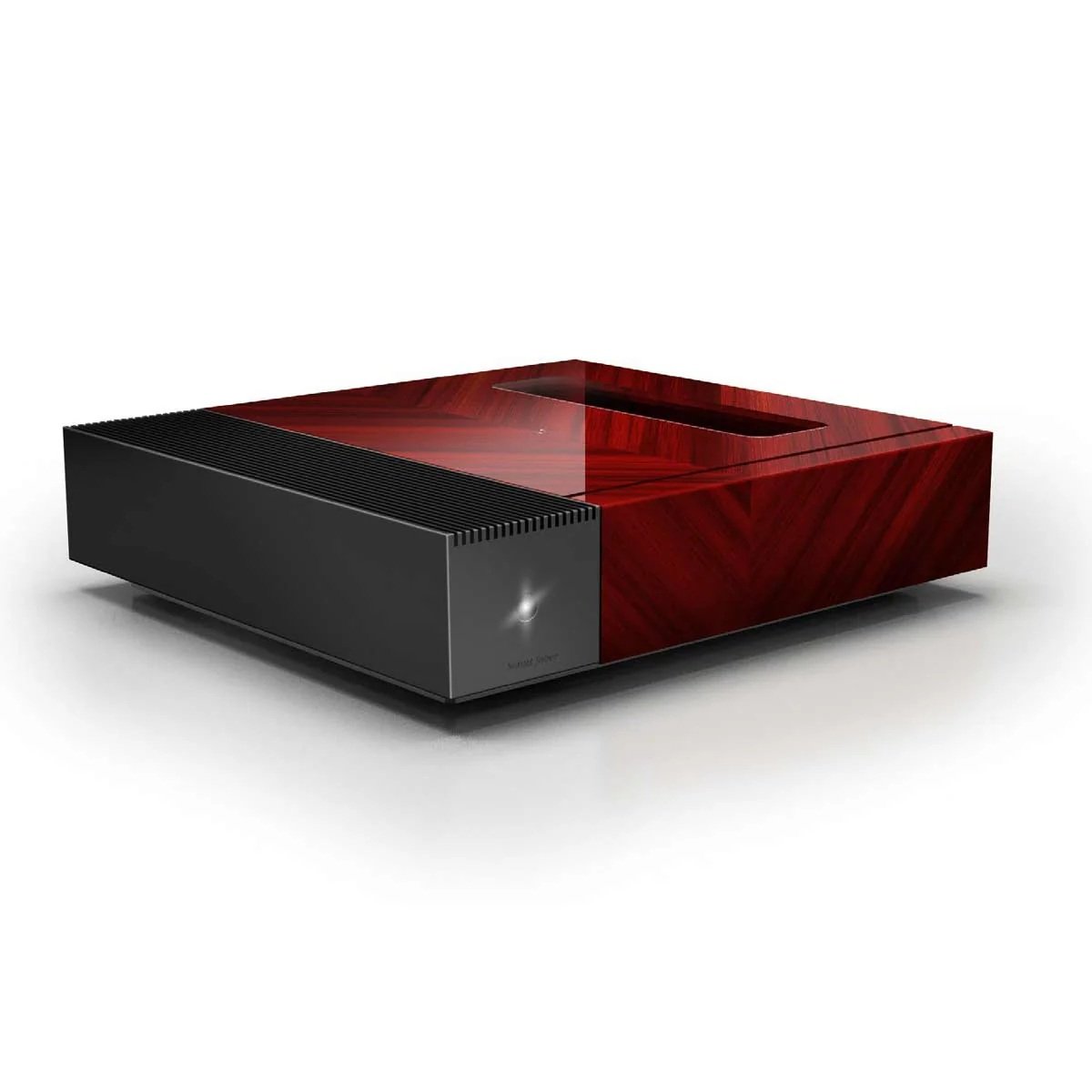

CROSSOVER SYSTEM
Full Discrete –Pure Analog Stereo/Mono active Crossover
Input Channels- 2 Unbalanced – 2 Balanced
Output Channels- 8 Unbalanced – 8 Balanced
Frequency Response-
MAIN: 25Hz -150KHz
PROC: 5Hz -150KHz
Input Impedance-
Unbalanced: 20 kΩ
Balanced: 10 kΩ
Output Driving Capability
Unbalanced: 6 V rms (+15,5 dBv) @ 490 Ω
Balanced: 11 V rms (+20 dBv) @ 980 Ω
Mains Voltage (Frequency)- 115V (60 Hz) or 230V (50 Hz), factory-set.
Dimensions (H X W X D)-
110 x 451 x 424 mm
4,3 x 17,8 x 17 in
Weight-
17 kg
37,5 lb
