PRODUCT DETAILS
Frequency response (typical in-room)
40Hz - 22kHz
Speaker units
2 × Ruark 20mm silk dome tweeters,
2 × Ruark 100mm NS+ bass-mid woofers
Amplifier
Fully active Class D (120W Total)
Enhancements
Adjustable bass and treble (-6dB to +6dB),
Switchable Stereo+
Cabinet type
Twin bass reflex
Digital to Analogue Converter (DAC)
Burr-Brown 32-bit 192kHz
Analogue to Digital Converter (ADC)
Burr-Brown 32-bit 192kHz

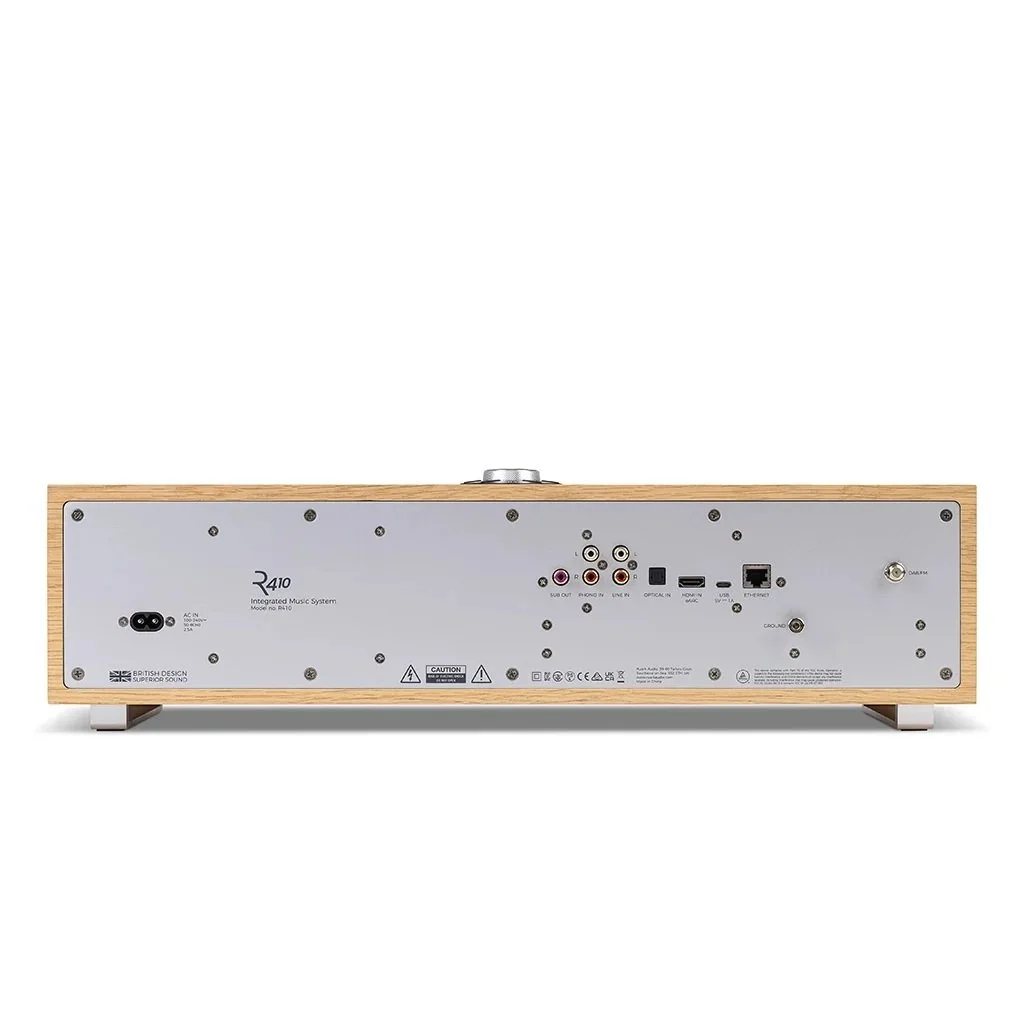

Connectivity-
Aerial connector- 75Ω F-type connector
Apple AirPlay
Google Cast
Bluetooth (version & codecs)- V5.1, aptX HD, SBC, AAC
Bluetooth headphone support
Built-in music streaming services
Spotify Connect, TIDAL Connect and Qobuz Connect
CD player
UPnP™ DLNA media server compatible
Ethernet- RJ45 connector 10/100 Mbps
HDMI input- ARC and eARC
Line in- Stereo RCA input (up to 2.3Vrms)
Turntable input- RCA input with MM phono stage with adjustable gain (2-7mv)
Multiroom capable- Yes with Apple AirPlay and Google Cast
Optical input- Up to 24-bit 96kHz PCM
Radio- Internet Radio, DAB/DAB+, FM with RDS (Multi region 76.0-108MHz)
Subwoofer output- Mono RCA 2.0Vrms
USB-C port- USB 2.0, FAT, FAT32, exFAT, NTFS, ext2/3/4, 5V, 5W max, charging and multi format audio file playback
Wi-Fi- 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
General specifications
Finish- White Oak veneer cabinet with ebonised grille and ebony veneer inlay
Product dimensions (cabinet)- H132 × W560 × D290mm
Product dimensions (max – inc. feet, controls and cables etc.)- H150 × W560 × D325mm
Product weight- 9.5kg
Product power input-
90-240VAC 50-60Hz 2.5A
Power inlet connector- IEC C8 cloverleaf AC socket
Power consumption- 2W standby 8W typical
Dimensions- H440 × W680 × D250mm
Packaged weight- 12.2kg
