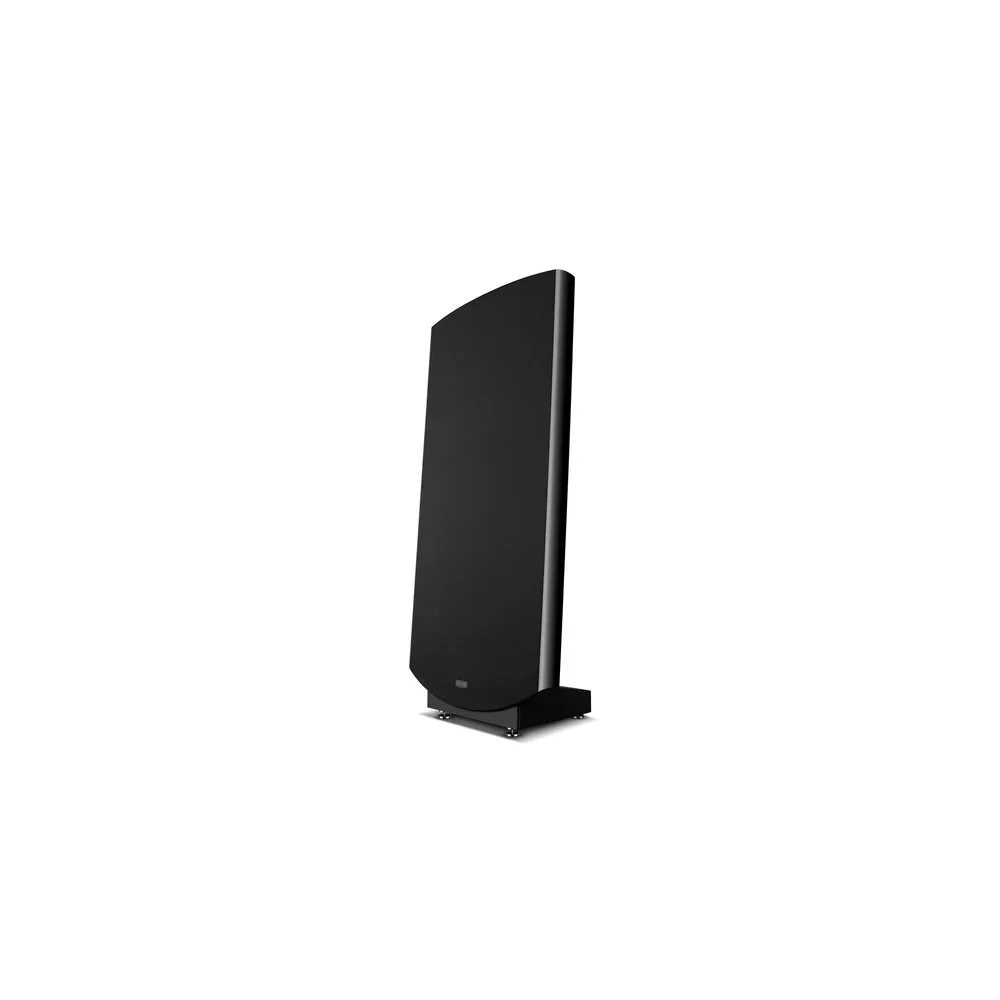

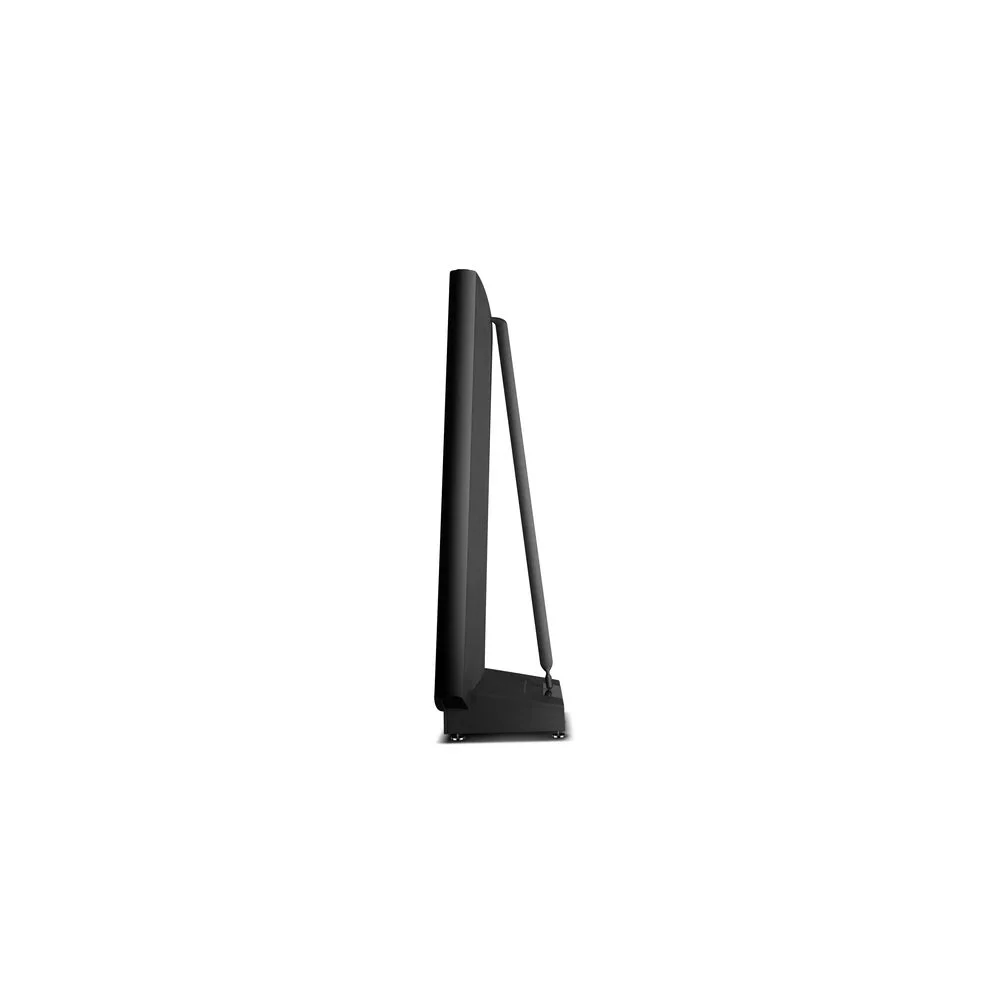

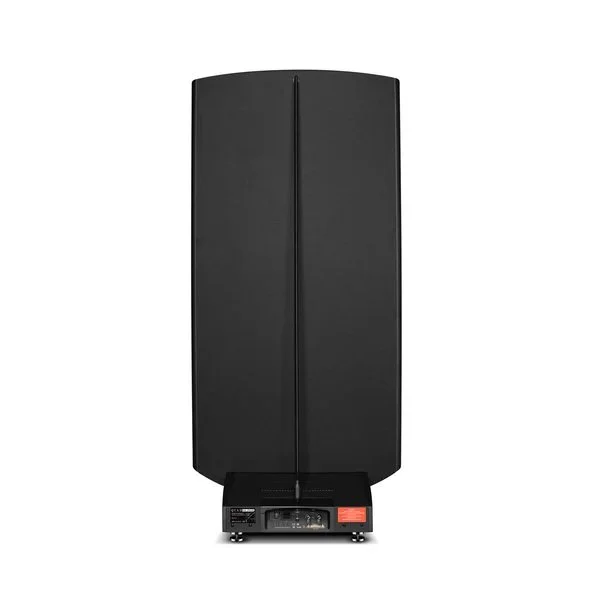

Quad ESL 2912X

€16,995.00

The ESL 2912X is the flagship QUAD electrostatic loudspeaker. Featuring an expanded six-panel design for increased radiating area, higher sound pressure levels, dynamics and extension, the ESL 2912X delivers an immersive listening experience with deeper bass and rich textures, bringing even the most complex music to life. Built for the ultimate audiophile experience, it offers enhanced dynamic range, improved headroom, and a spacious soundstage.

The ESL 2912X is the flagship QUAD electrostatic loudspeaker. Featuring an expanded six-panel design for increased radiating area, higher sound pressure levels, dynamics and extension, the ESL 2912X delivers an immersive listening experience with deeper bass and rich textures, bringing even the most complex music to life. Built for the ultimate audiophile experience, it offers enhanced dynamic range, improved headroom, and a spacious soundstage.

PRODUCT DETAILS

Format- Floor standing dipole with 3° fixed tilt

Type- Multiple electrostatic drive membranes

Point Source Time Delay- Progressive concentric rings

Chassis Structure- Heavy duty composite aluminium / steel

Panel Elements- 6

Maximum Output- 2 N / m2 at 2m on axis

Sensitivity- 1.5 mbar per volt referred to 1m (86dB/2.83V rms equivalent)

Nominal Impedance- 8 Ohms

Impedance Variation- 4 - 20 Ohms

Maximum Input-
Continuous input voltage (rms):
10V Programme Peak for undistorted output: 40V
Permitted peak input: 55V

Frequency Response-
32Hz - 21kHz (-6dB)
28Hz - 23kHz (useable)

Directivity Index- See Polar Diagrams

Distortion (100dB @ 1m)-
Above 1000Hz <0.15%
Above 100Hz <0.5%
Above 50Hz <1.0%

AC Input- 220 - 240V, 100-120V

Power Fuse-
100mA anti-surge, 200 - 240V
200mA anti-surge, 100 - 120V

Power Consumption- 8W

Dimensions (H x W x D)- 1470 x 690 x 380 (mm)

Net Weight- 44kg
