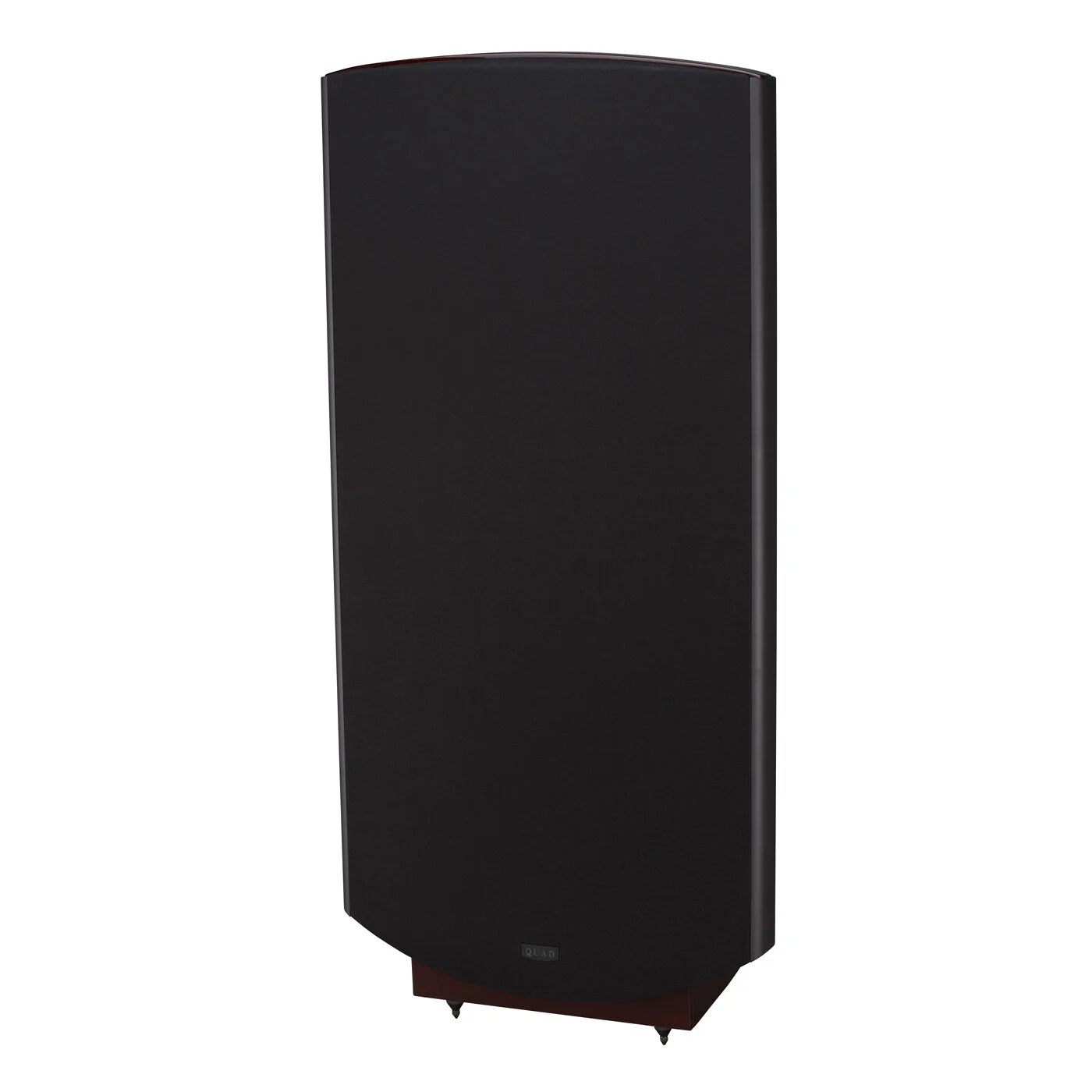

Quad ESL-2912
DESCRIPTION
The latest version of our highly acclaimed ESL series, the ESL-2812 and 2912 are a celebration of a classic. Using the signature mylar diaphragm, yet while re-evaluating all circuitry and components, the result is an authentic ESL experience – incredible full range accuracy and startling realism.
DESCRIPTION
The latest version of our highly acclaimed ESL series, the ESL-2812 and 2912 are a celebration of a classic. Using the signature mylar diaphragm, yet while re-evaluating all circuitry and components, the result is an authentic ESL experience – incredible full range accuracy and startling realism.
DESCRIPTION
The latest version of our highly acclaimed ESL series, the ESL-2812 and 2912 are a celebration of a classic. Using the signature mylar diaphragm, yet while re-evaluating all circuitry and components, the result is an authentic ESL experience – incredible full range accuracy and startling realism.
PRODUCT DETAILS
Technical Specifications
Format- Floor Standing Dipole with 3 degree Fixed Tilt
Type- Multiple Electrostatic Drive Membranes
Time Delay- Progressive Concentric Rings
Chassis Structure- Heavy Duty Composite Aluminium Steel
Panel Elements- 6
Maximum Output- 2 N/m_ at 2m On Axis
Sensitivity- 1.5mbar Per Volt Referred To 1m(86 dB / 2.83V RMS Equivalent)
Impedance Variation- 4-20 Ohms
Maximum Input-
Continuous Input Voltage (RMS): 10V
Programme Peak For Undistorted Output: 40V
Permitted Peak Input: 55V
Frequency Response-
32Hz - 21kHz (-6dB)
28Hz - 21kHz (useable)
Distortion (100dB at 1m)-
Above 1000Hz 0.15%
Above 100Hz 0.5%
Above 50Hz 1.0%
