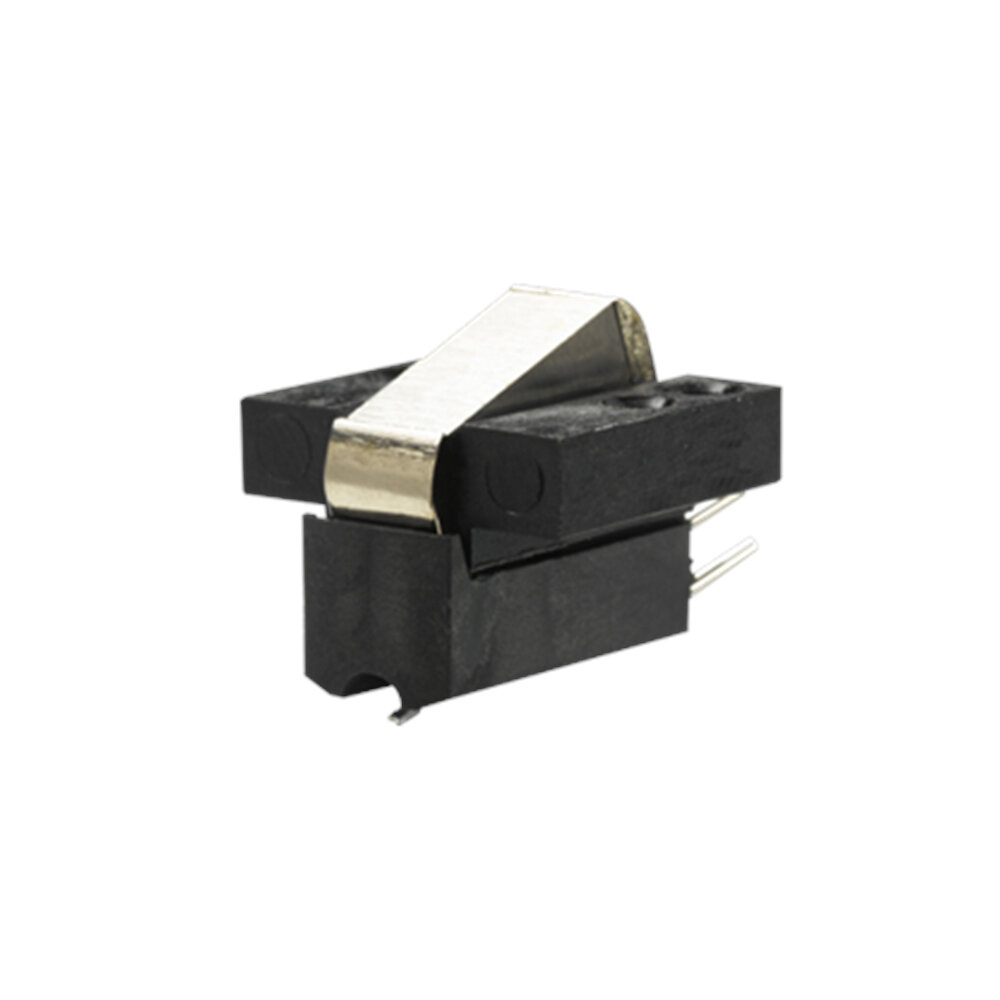

Ortofon SPU Classic N E
DESCRIPTION
The SPU Classic NE is sold without the integrated headshell unit. The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
DESCRIPTION
The SPU Classic NE is sold without the integrated headshell unit. The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
DESCRIPTION
The SPU Classic NE is sold without the integrated headshell unit. The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
PRODUCT DETAILS
Output voltage at 1000 Hz, 5cm/sec- 0.2 mV
Channel balance at 1 kHz- < 1 dB
Channel separation at 1 kHz- > 20 dB
Channel separation at 15 kHz- > 10 dB
Frequency response- 20-20.000 Hz + 3/- 2 dB
Tracking ability at 315Hz at recommended tracking force- 65 µm
Compliance, dynamic, lateral- 8 µm/mN
Stylus type- Nude elliptical
Stylus tip radius- r/R 8/18 µm
Tracking force range- 3.0-5.0 g (30-50 mN)
Tracking force, recommended- 4.0 g (40 mN)
Tracking angle- 20°
Internal impedance, DC resistance- 2.0 ohm
Recommended load impedance- > 10 ohm
Coilwire material- High Purity Copper (OFC)
Cartridge colour- Black
Cartridge weight- 13 g
