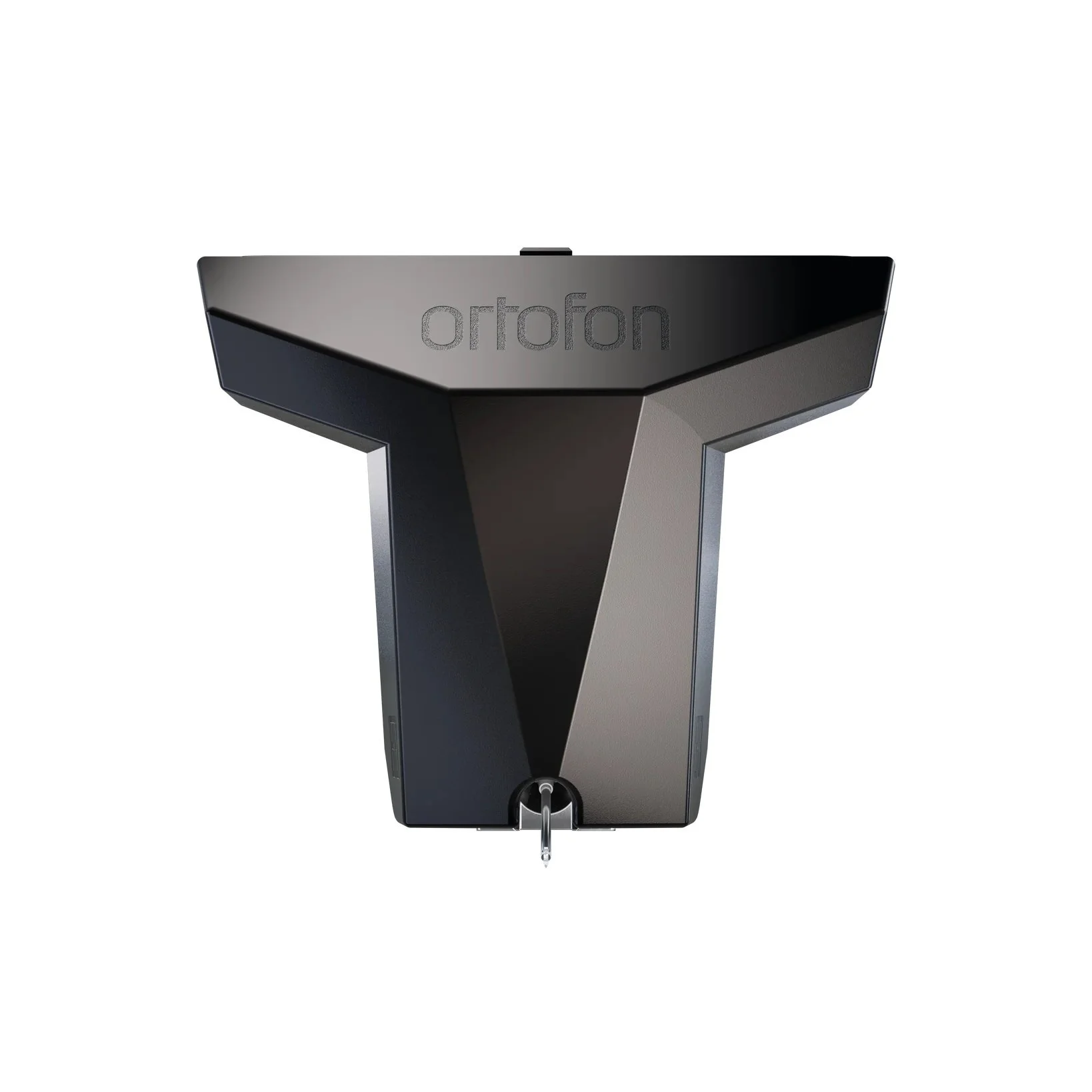

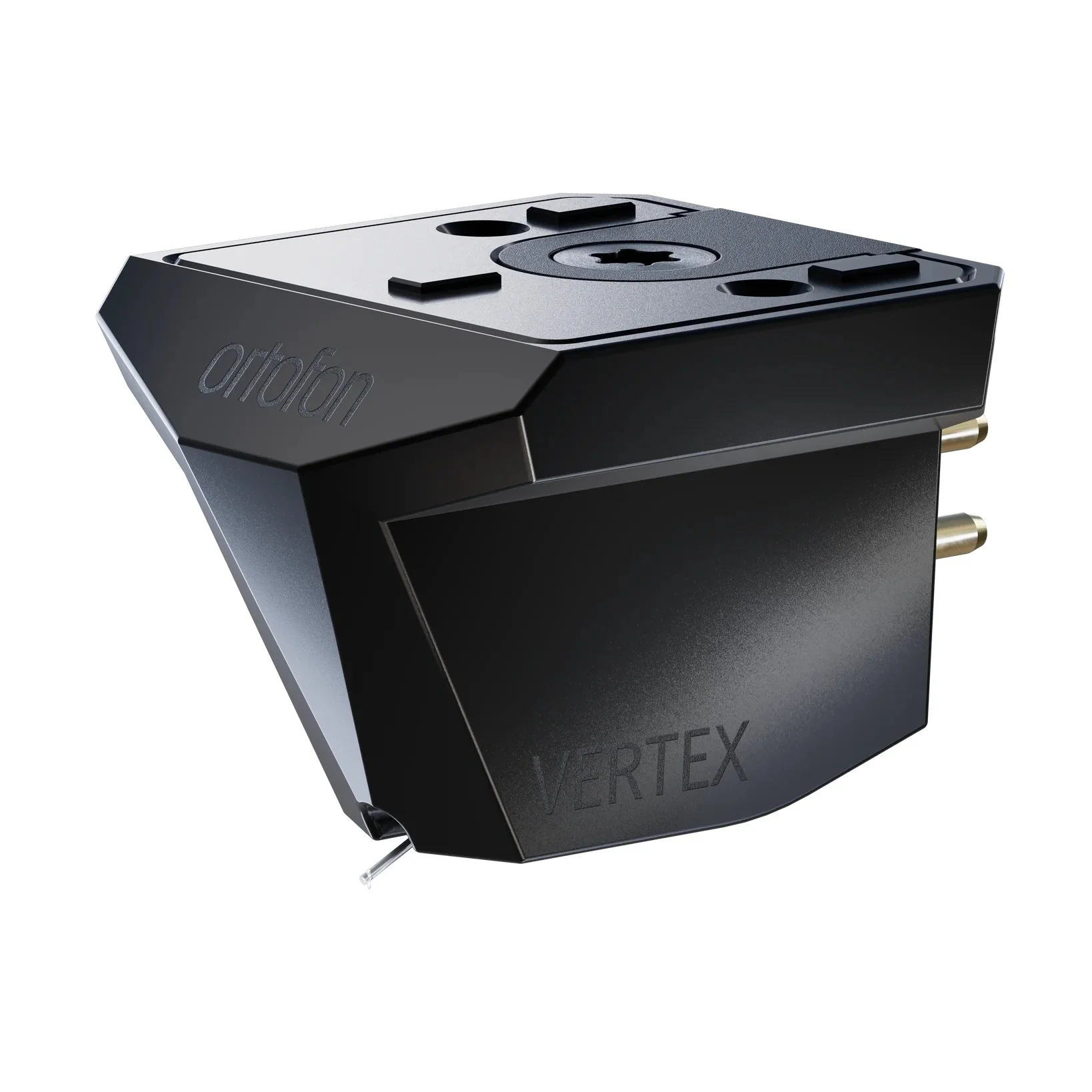

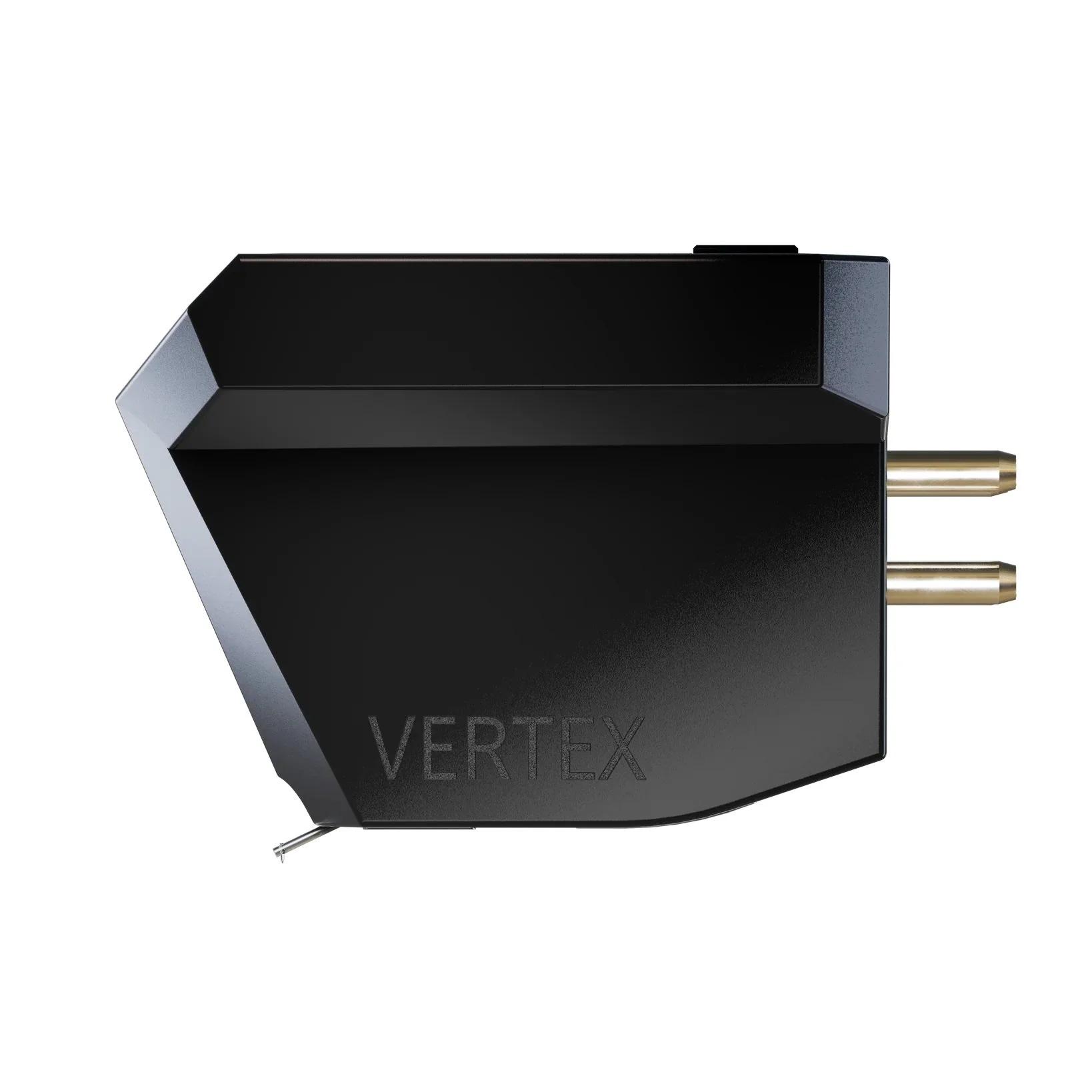

Ortofon MC Vertex

€14,995.00

Developed and manufactured by Ortofon, MC Vertex reflects a holistic approach to cartridge design, where each element is defined in relation to the others and optimized as part of a complete system.

MC Vertex is conceived as a unified structure, where the Vertex diamond, materials, and mechanical and magnetic design are specified in direct relation to one another. Every interface is controlled to ensure consistency and predictable performance.

Developed and manufactured by Ortofon, MC Vertex reflects a holistic approach to cartridge design, where each element is defined in relation to the others and optimized as part of a complete system.

MC Vertex is conceived as a unified structure, where the Vertex diamond, materials, and mechanical and magnetic design are specified in direct relation to one another. Every interface is controlled to ensure consistency and predictable performance.

PRODUCT DETAILS

Channel balance at 1 kHz- 0.1 dB

Output voltage at 1 kHz, 5cm/sec- 0.3 mV0.3 mV

Channel separation at 1 kHz- 30 dB

Frequency response 20 Hz - 20 kHz- +/-1 dB

Compliance, dynamic, lateral- 9 μm/mN

Cantilever material- Laser Polished Solid Diamond

Stylus type- Vertex Diamond

Stylus tip radius- r/R 4/110 μm

Coil system- High-purity silver coils

Tracking force, recommended- 2.5 grams

Tracking angle- 23°

Internal impedance, DC resistance- 19 Ω

Recommended load impedance- >100 Ω

Cartridge body material- SLM Titanium and DLC Coating
