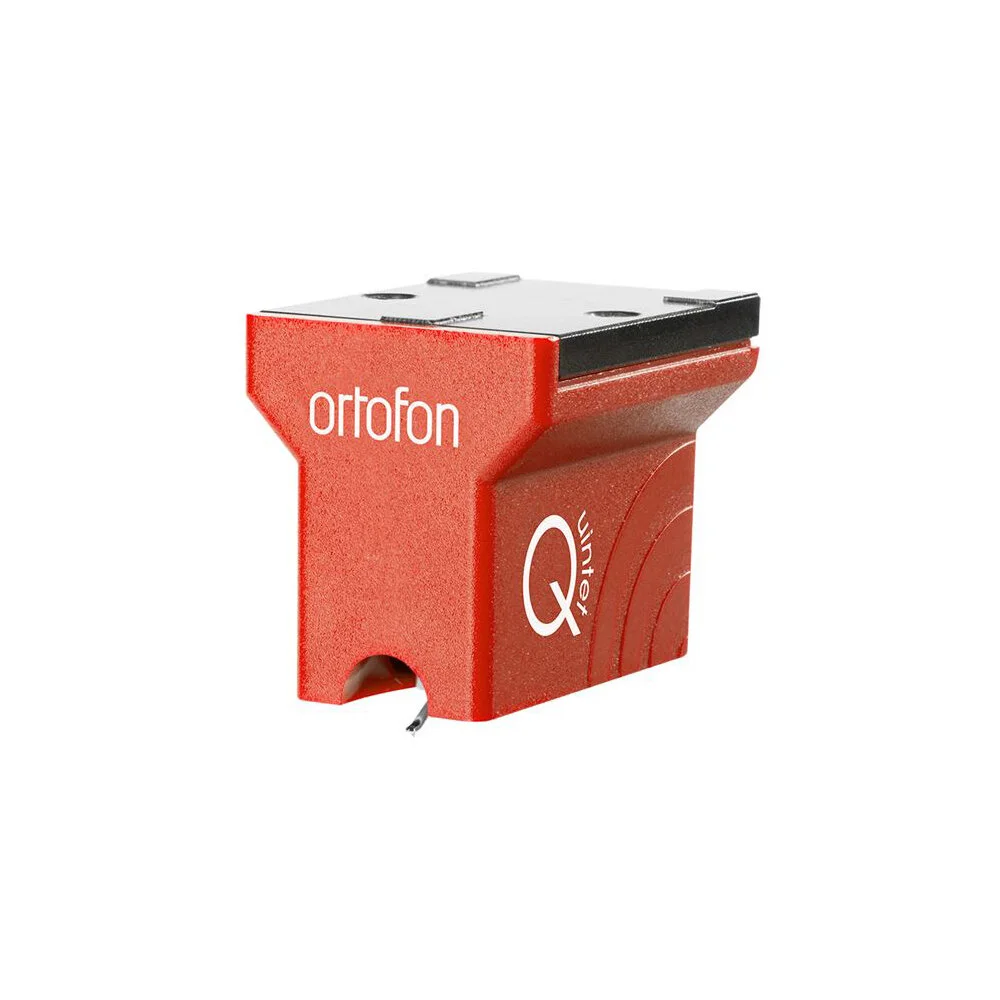

Ortofon MC Quintet Red
DESCRIPTION
The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon’s standards.
This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
DESCRIPTION
The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon’s standards.
This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
DESCRIPTION
The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon’s standards.
This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
PRODUCT DETAILS
Output voltage at 1 kHz 5 cm/sec- 0.5 mV
Channel balance- < 1.5 dB
Channel separation at 1 kHz- > 21 dB
Channel separation at 15 kHz- > 14 dB
Frequency range at -3 dB- 20 - 25.000Hz
Frequency response- 20-20.000 Hz - +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force- 65 μm
Compliance, dynamic, lateral- 15 μm/mN
Stylus type- Elliptical
Stylus tip radius- r/R 8/18 μm
Tracking force range- 2.1-2.5 g (21-25 mN)
Tracking force recommended- 2.3 g (23 mN)
Tracking angle- 20º
Internal impedance, DC resistance- 7 Ohm
Recommended load impedance- >20 Ohm
Cartridge body material- ABS/Aluminium
Coil wire material- Copper
Cartridge colour- Red
Cartridge weight- 9 g
