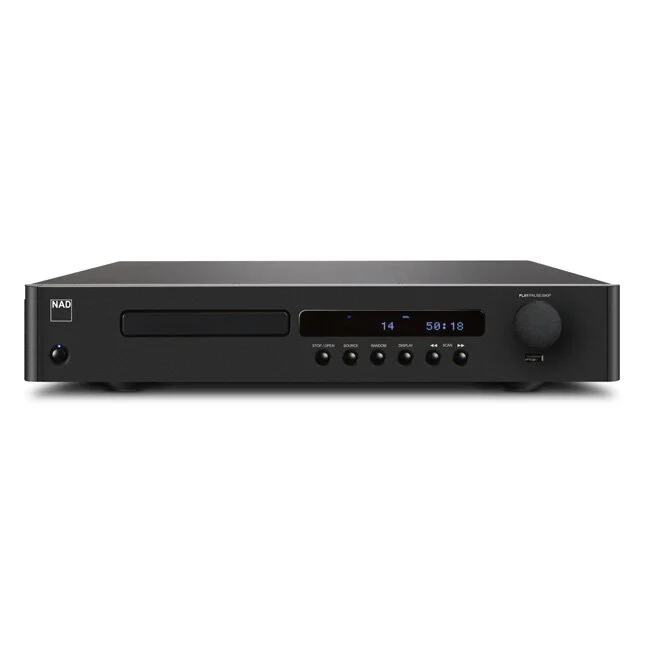

NAD C 568
Key Features
CD, CD-R and CD-RW Compatible
USB Input supports external memory and audio rates up to 384kbps
NAD CD-8 full function remote control
Ultra-High Precision Clock Module for lowest jitter
Wolfson 24 bit DAC
Key Features
CD, CD-R and CD-RW Compatible
USB Input supports external memory and audio rates up to 384kbps
NAD CD-8 full function remote control
Ultra-High Precision Clock Module for lowest jitter
Wolfson 24 bit DAC
Key Features
CD, CD-R and CD-RW Compatible
USB Input supports external memory and audio rates up to 384kbps
NAD CD-8 full function remote control
Ultra-High Precision Clock Module for lowest jitter
Wolfson 24 bit DAC
PRODUCT DETAILS
General Parameters
Output level-
Analog: 2.2 ± 0.1 V
Optical: -22.5 ±3.5dBm
Coaxial: 650 ±150mV
Frequency response-
±0.3 dB (ref. 0 dB 20 Hz-1 kHz)
±0.5 dB (ref. 0 dB 5 kHz-20 kHz)
Total harmonic distortion- <0.01% (ref. 1 kHz, Audio LPF)
Signal/Noise ratio- 118 dB (ref. 1 kHz, A-weighted LPF Stop, Pause)
Channel balance- ±0.5 dB (ref. 0dB 1kHz)
Dynamic range- 95dB
Channel separation- >90dB
De-emphasis-
-3.73 to -5.33 dB (ref. 0dB 1 kHz, 5 kHz)
-8.04 to -10.04 dB (ref. 0dB 1 kHz, 16 kHz)
Linearity-
±0.01 dB (ref. 0dB 1 kHz at -3 dB)
±0.02 dB (ref. 0dB 1 kHz at -6 dB)
±0.02 dB (ref. 0dB 1 kHz at -10 dB)
±0.05 dB (ref. 0dB 1 kHz at -20 dB)
±0.15 dB (ref. 0dB 1 kHz at -60 dB)
Standby power- <0.5W
USB
Output level- 2.2 ± 0.2V
Frequency response- ±1dB (ref. 0dB 20Hz – 16kHz)
Total harmonic distortion- <0.03% (ref. 0dB 1kHz, Audio LPF)
Signal/Noise ratio- 118dB (ref. 0dB 1kHz, A-weighted Pause)
Weight & Dimensions
Gross Unit Dimensions* (W x H x D)-
435 x 80 x 306mm
17 1/8 x 3 3/16 x 12 11/16″**
Net weight- 4.9kg (10.8lb)
Shipping weight- 6.9kg (15.2lb)
*Gross dimensions include feet, extended buttons and rear panel terminals.
**Non-metric measurements are approximate.
