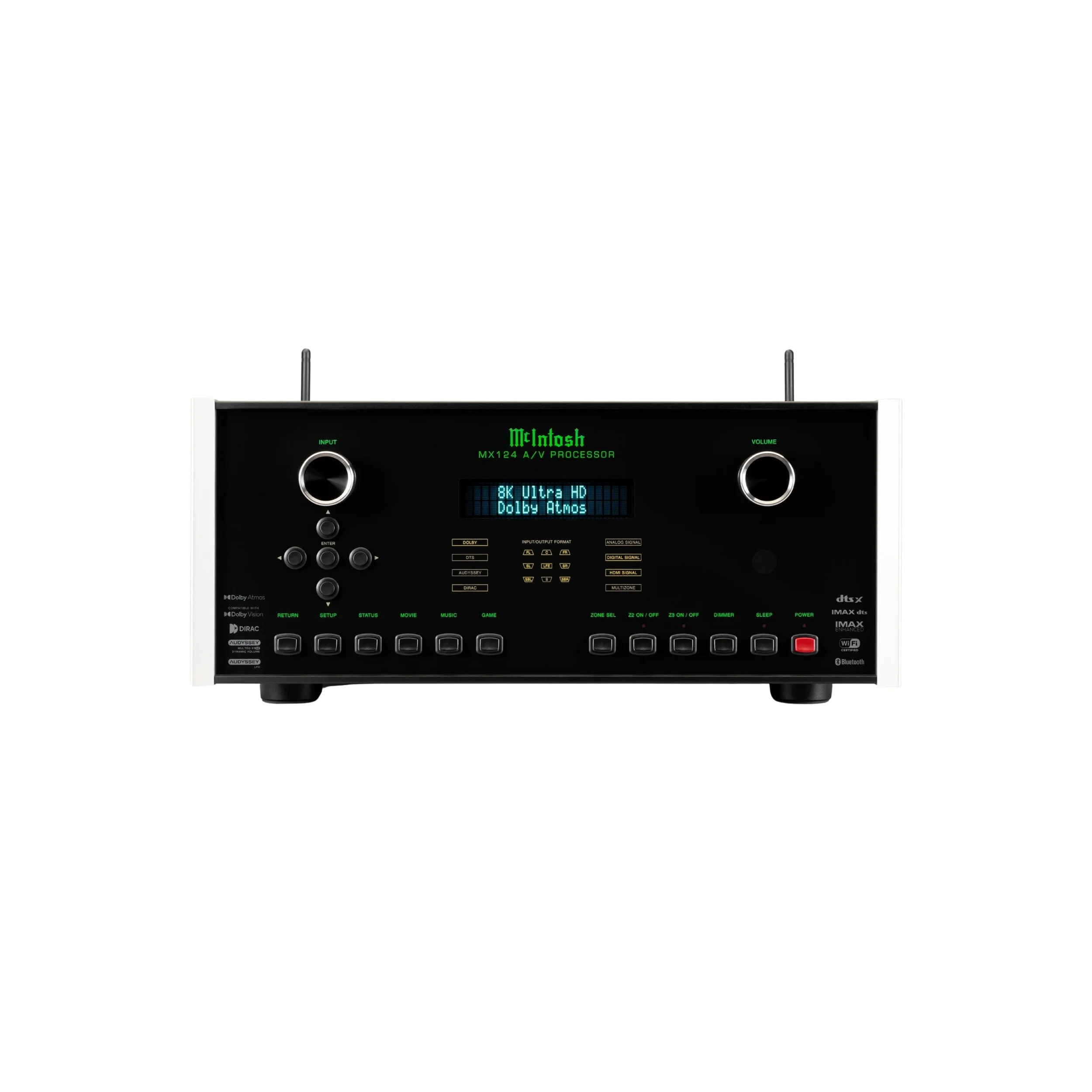

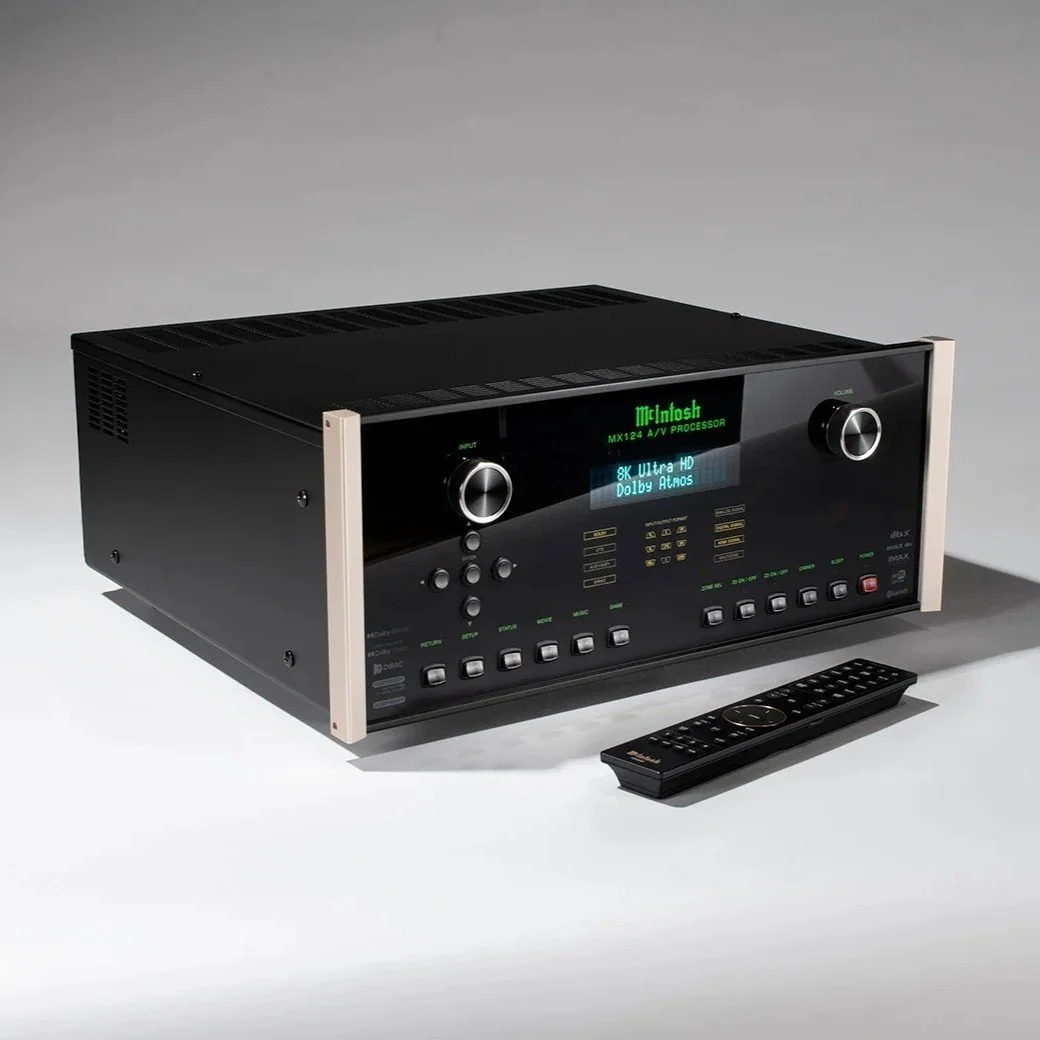

McIntosh MX124

€19,885.00

The MX124 A/V Processor invites you to experience cinematic excellence in the McIntosh way: where engineering excellence meets the art of storytelling so that everything is connected and nothing is compromised. With 13.4 channels of immersive audio, stunning 8K Ultra HD clarity, and the vivid realism of advanced HDR, the MX124 transforms every viewing into an event. With the latest in advanced processing and a design built for performance, it delivers a level of home entertainment that is unmistakably McIntosh.

PRODUCT DETAILS

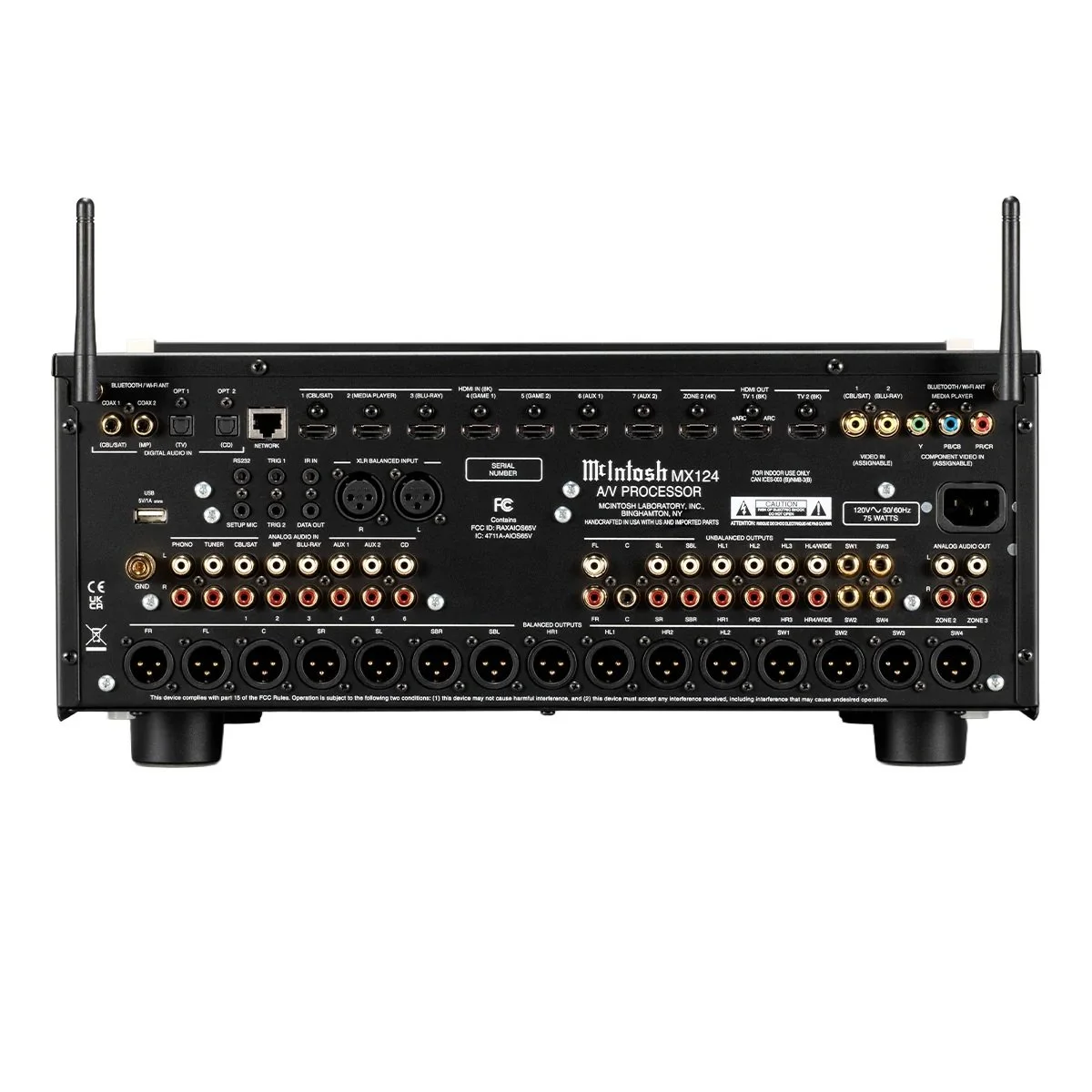

Connectivity

Multi-Channel Outputs Balanced- 11.4

Multi-Channel Outputs Unbalanced- 15.4

Stereo Inputs Balanced- 1

Stereo Inputs Unbalanced- 8 (including 1 Moving Magnet Phono)

Stereo Outputs Unbalanced- 2 (for Zones 2 and 3)

HDMI Inputs- 7

HDMI Outputs- 3

Digital Coaxial Input- 2

Digital Optical Input- 2

USB Inputs- 1 (Type A)

Component Inputs- 1

Composite Inputs- 2

Subwoofer Output- 4

Bluetooth Transmitter- Yes

Network Connections- 1

Streaming Services- Apple AirPlay; Bluetooth; Qobuz Connect; Spotify Connect; TIDAL Connect; Roon Ready

Max # of audio channels in Zone A- 17 (13.4)

Additional Zone Outputs-
Zone 2: HDMI audio/video, analog stereo audio
Zone 3: Analog stereo audio

HDMI Features-
Resolution and Refresh Rates
8K/60Hz and 4K/120Hz

HDCP- 2.3

High Dynamic Range (HDR) Formats- HDR (static HDR); Dynamic HDR; Dolby Vision (including low latency); HDR10+; HLG

eARC- Yes (on 1 output)

Video Scaling- 8K Upconversion

4:4:4 Color- Yes

Rec. 2020 (BT.2020)- Yes

3D video pass-through- Yes

Dynamic Lip-sync- Yes

Auto Low Latency Mode (ALLM)- Yes

Quick Frame Transport (QFT)- Yes

Variable Refresh Rate (VRR)- Yes

Audio Formats-
Dolby
Dolby Atmos, Dolby Surround Upmixer
DTS
DTS-X Pro, Neural:X Surround Upmixer, DTS Virtual:X

MPEG-H Audio- Yes

360 Reality Audio- Yes

IMAX Enhanced- Yes

Electronic Specifications

Frequency Response-
±0.5 dB from 20 Hz - 20 kHz
Subwoofer: ±0.5 dB from 20 Hz - 8 kHz

Total Harmonic Distortion- 0.005% (DSP Bypass)

Signal To Noise Ratio-
Phono: 86 dB below 10 mV Input
High Level: 96 dB below rated Output

Control-
Third Party Control
Connects with Control4 Certification (SDDP)
Works with Crestron Home Certification

Tone Controls- 9 Band Equalizer

OSD Overlay on HDMI Output- Yes

Input-Output Format Indicators- 9 in and 9 out

RS232 Control Inputs- 1

Power Control Outputs- 2

Rear Panel Data Ports- 1

Rear Panel IR Sensor Inputs- 1

General Specifications

DSP Bypass Mode- Yes

Room Correction-
Dirac Live Room Correction and Dirac Live Bass Control (all licenses included) and
Audyssey MultEQ XT32, Dynamic EQ / Dynamic Volume, LFC

Room Correction Microphone and Stand Included- Yes

Bluetooth Version- 5.4

Bluetooth Supported Protocols- A2DP, SBC, 2.4G Hz

Channel Formats- 13.4, 9.2.4, 7.1, 5.1, Stereo

Network Features- Wi-Fi dual band 2.4/5GHz

Unique Crossover Frequency, Each Speaker- Yes

Weights & Dimensions

Unit Dimensions (W x H x D)- 17-1/2" (44.45cm) x 7-3/4" (19.7cm) (including feet) x 17" (43.2cm) (including front panel, knobs, rear panel connections, and Wi-Fi antennas)

Unit Weight- 29 lbs (13.2 kg)

Shipping Dimensions (W x H x D)- 25" (63.5cm) x 18-3/8" (46.7cm) x 28" (71.1cm)

Shipping Weight- 53 lbs (24 kg)
