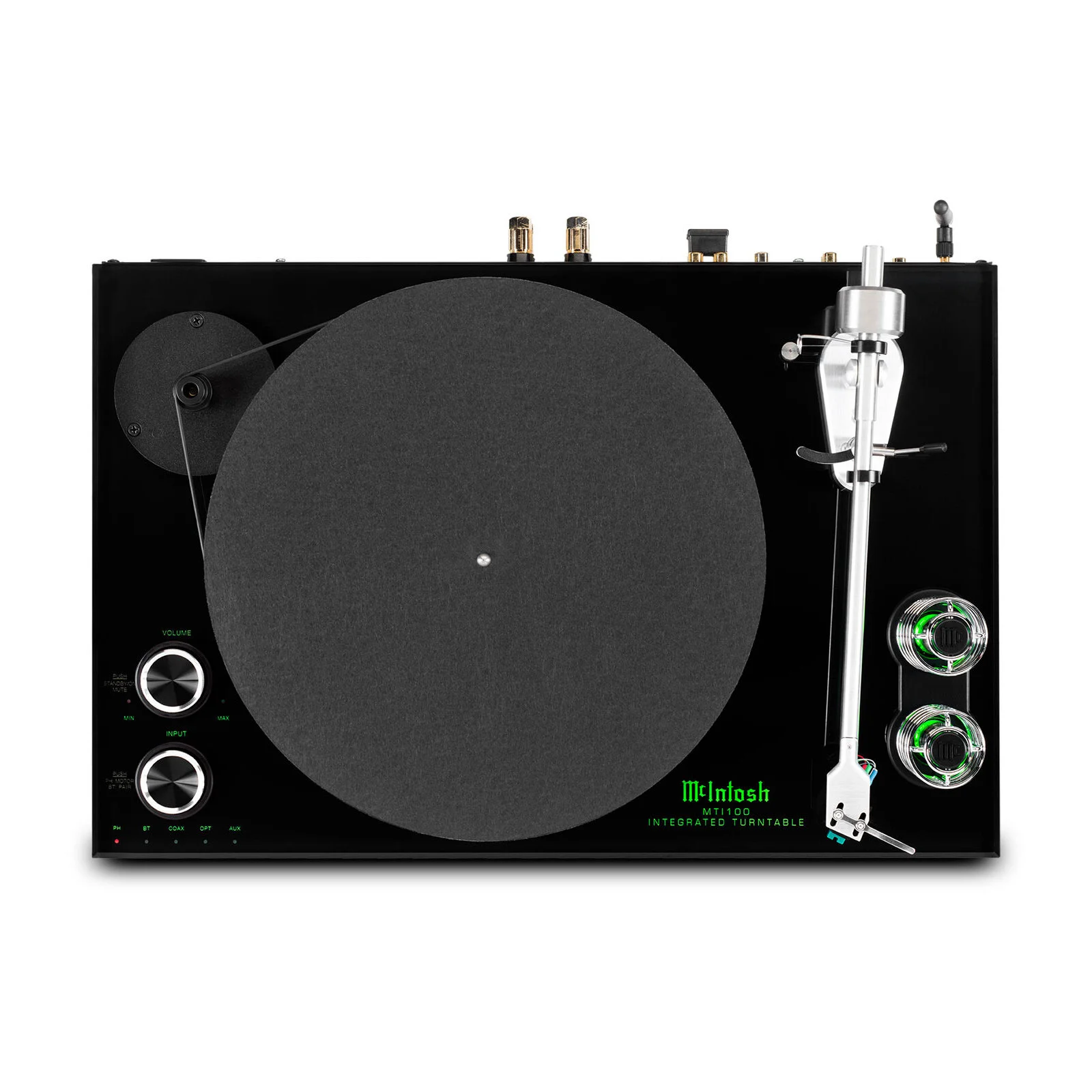

McIntosh MTI100
Integrated Turntable
A modern home audio system for modern lifestyles
Turntable, preamplifier and amplifier all in one
Includes Bluetooth® and auxiliary inputs
Just add your music and speakers
PRODUCT DETAILS
CARTRIDGE SPECIFICATIONS
Cartridge Type-Moving Magnet
Output Level- 4mV at 1kHz
Load Impedance- 47k Ohms
Frequency Response- 12Hz to 30kHz
Channel Separation- 30dB at 1kHz
Compliance- 12 x 10-6 cm/dyne
Recommended Tracking Force- 2.0 g
Channel Difference- Less than 1dB at 1kHz
Total Mass- 6.5 g
Stylus- Elliptical
Cantilever Material- Aluminum
TONEARM SPECIFICATIONS
Bearing- Lateral type bearing
Arm Tube- Damped machined aluminum
Counterweight- Concentric
Adjustments- None
TURNTABLE SPECIFICATIONS
Playback Speeds- 33-1/3 and 45 rpm
Motor Type- Permanent magnet AC synchronous
Speed Control- Manual speed change via a 2 speed pulley
Platter- Aluminum
Platter Bearing- Oil bath bearing with a high performance polyetheretherketone (PEEK) thrust disc and machined graphite impregnated brass bushings
Signal To Noise Ratio- 35dB - 40dB
Wow & Flutter- 0.1%
CONNECTIVITY
Stereo Outputs Unbalanced- 1 (bridged to AMP IN)
Stereo Inputs Unbalanced- 1
Digital Coaxial Input- 1
Digital Optical Input- 1
Subwoofer Output- 1
Wireless Input- High Definition Bluetooth 4.2
ELECTRONIC SPECIFICATIONS
Power Output per Channel-
50 Watts into 8 Ohms
80 Watts into 4 Ohms
Number of Channels- 2
Speaker Impedance- 4 or 8 Ohms
Rated Power Band- 20Hz to 20kHz
Total Harmonic Distortion-
0.5% (Amplifier)
0.2% (Preamplifier)
Dynamic Headroom-
1.0dB (8 Ohms)
1.3dB (4 Ohms)
Frequency Response +0,-0.7dB- 20Hz to 20kHz
Signal To Noise Ratio (Moving Magnet)- 75dB
Signal To Noise Ratio (High Level)- 90dB
Damping Factor-
8 Ohms: >200
4 Ohms: >100
Maximum Output (Balanced / Unbalanced)- 9V Unbalanced
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)- 19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)
Weight- 33.5 lbs (15.2 kg)
Shipping Weight- 40.5 lbs (18.4 kg)
