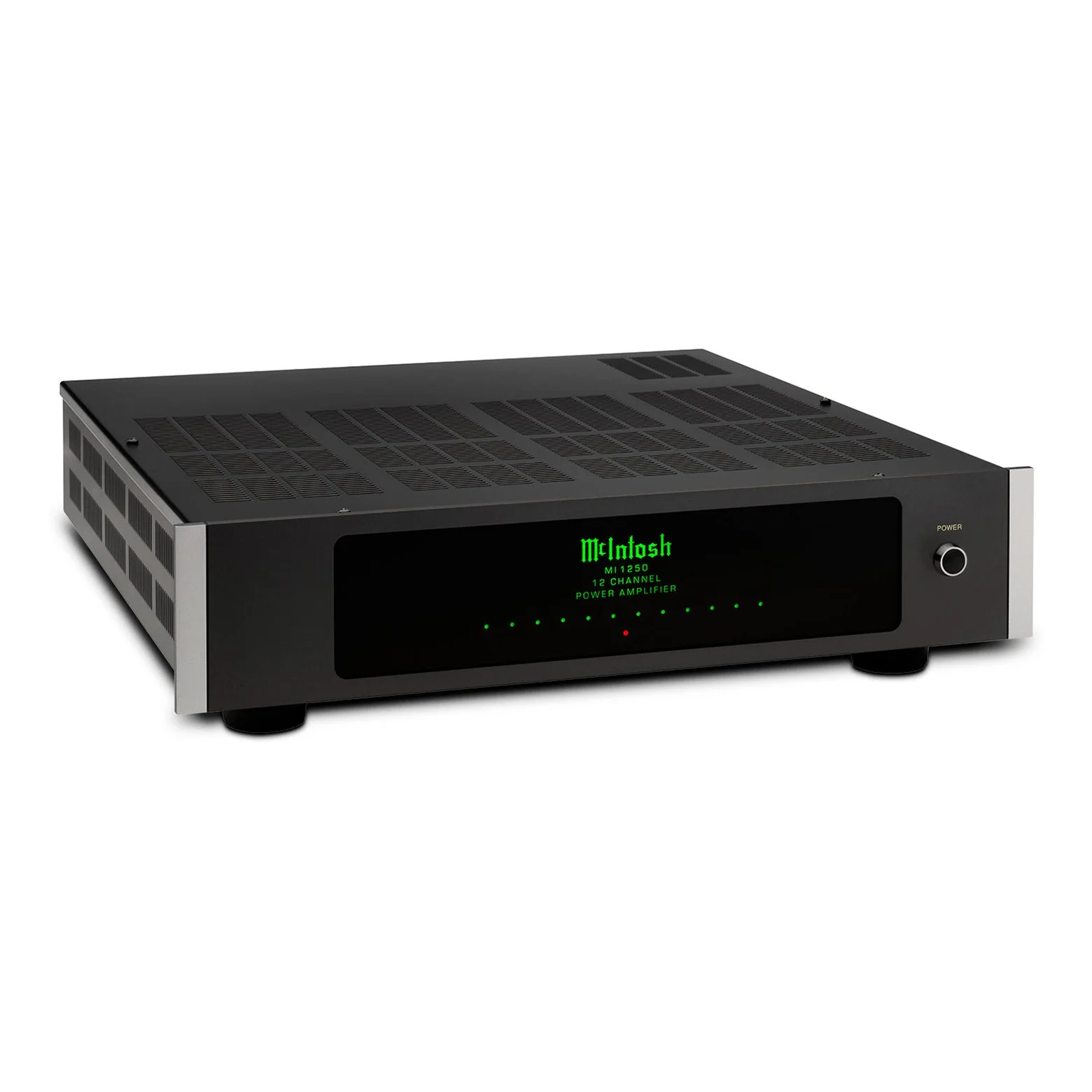

McIntosh MI1250
12-Channel Digital Amplifier
Ideal for multi-zone distributed audio
50 Watts into 8 Ohms
90 Watts into 4 Ohms
2U rack mountable
PRODUCT DETAILS
ELECTRONIC SPECIFICATIONS
Power Output per Channel-
50 Watts into 8 Ohms
90 Watts into 4 Ohms
Number of Channels- 12
Total Harmonic Distortion- 0.05%
S/N below rated output- 95dB
Dynamic Headroom-
8 Ohms: 2.1dB
4 Ohms: 3.3dB
Damping Factor-
8 Ohms: >65
4 Ohms: >32
Rated Power Band- 20Hz to 20kHz
Frequency Response- +0, -0.5dB from 20Hz to 20,000Hz
CONTROL
Remote Power Control- Yes
CONNECTIVITY
Speaker Binding Post Type- 2-pole Phoenix style push-in speaker terminals
GENERAL SPECIFICATIONS
Circuit Configuration- Closed-loop digital switching
Circuit Design- Digital
Output Type- Direct Coupled
Front Panel- Glass with removable rack mounting ears
Illumination- Direct LED
Chassis Style- Black painted steel
BTU Rating- 900 BTU/h
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D)- 17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
Unit Weight- 22 lbs (10 kg)
Shipping Weight- 38.4 lbs (17.4 kg)
