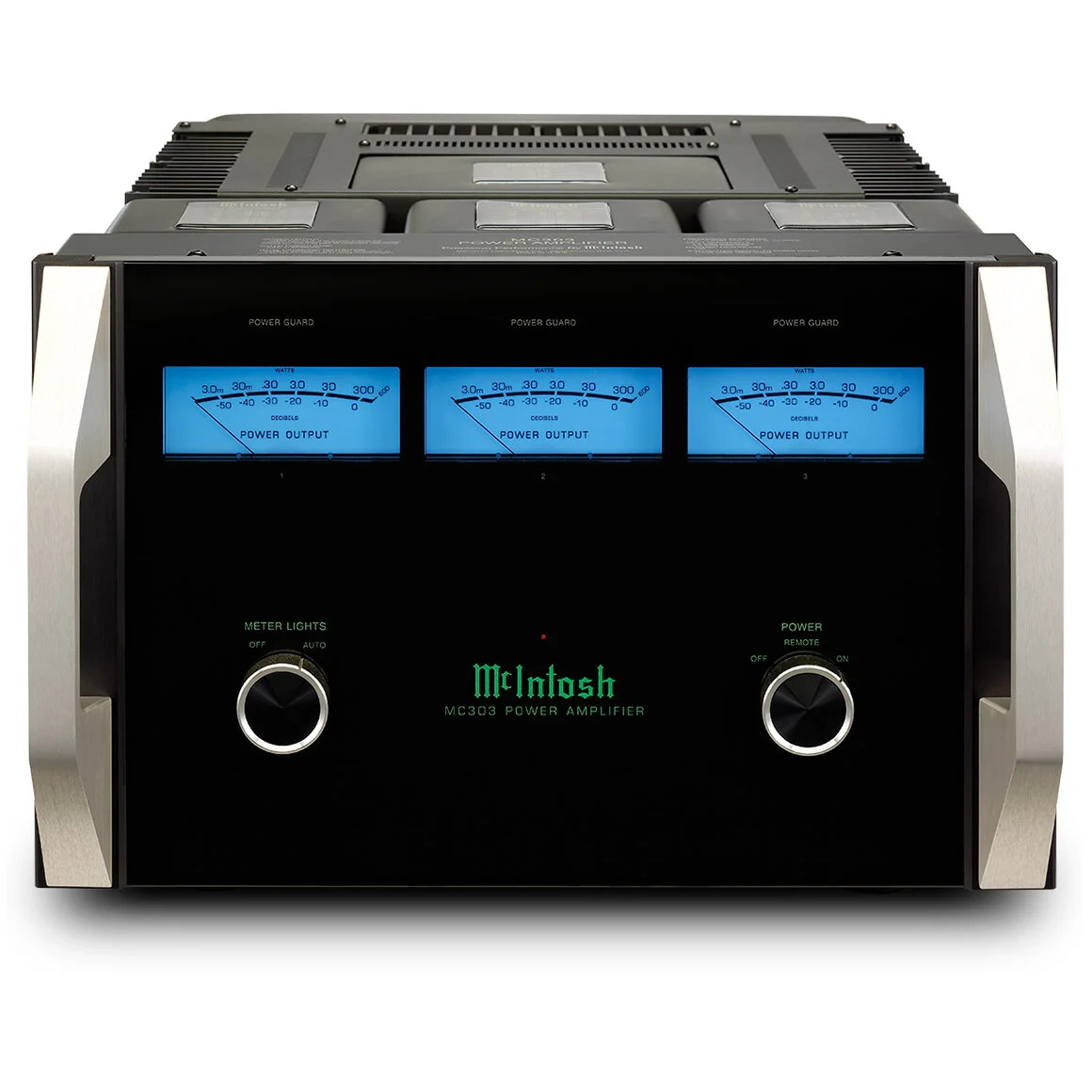

McIntosh MC303
3-Channel Solid State Amplifier
300 Watts x 3 Channels
Designed for home theatres
Tri-Amp capability
PRODUCT DETAILS
ELECTRONIC SPECIFICATIONS
Power Output per Channel- 300W @ 2, 4 or 8 Ohms
Number of Channels- 3
Total Harmonic Distortion- 0.005%
S/N below rated output- 112dB
Dynamic Headroom- 1.8dB
Damping Factor- >40
Rated Power Band- 20Hz to 20kHz
Frequency Response-
+0, -0.25dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz
CONTROL
Remote Power Control- Yes
GENERAL SPECIFICATIONS
Circuit Configuration- Push-Pull Complementary Autoformers
Circuit Design- Solid State
Output Type- Autoformer™
Meters- Yes
Meter Light Switch- Yes
Balanced Input- Yes
Front Panel- Glass with handles
Illumination- LED Fiber Optic
Chassis Style- Inverted
CONNECTIVITY
Speaker Binding Post Type- Yes
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)- 17-3/4" (45.09cm) x 12-3/8" (31.43cm) (including feet) x 22" (55.88cm) (including front panel and cables)
Weight- 155 lbs (70.3 kg)
Shipping Weight- 180 lbs(81.6 kg)
