McIntosh MA2375

€19,885.00

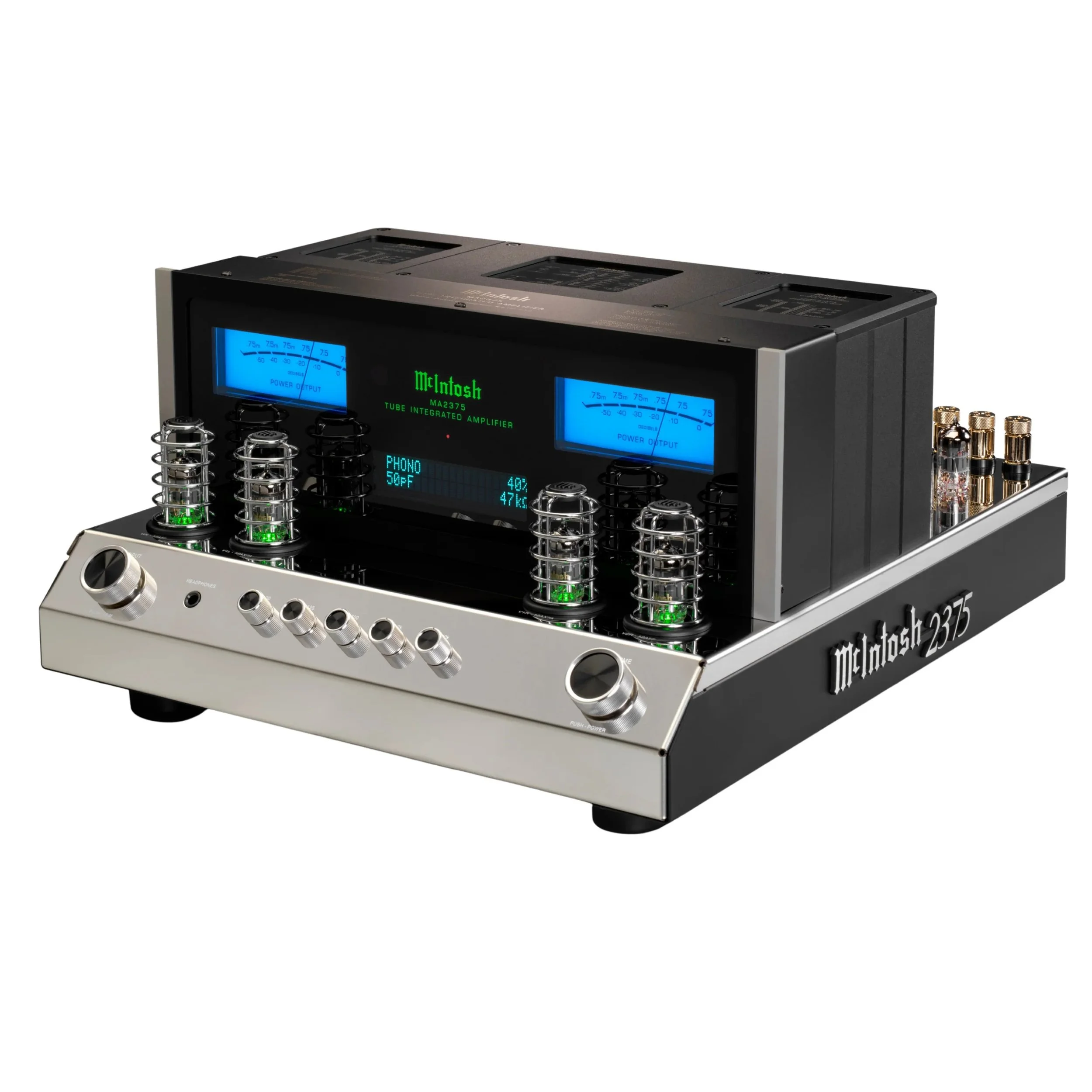

Our first vacuum tube integrated amplifier in over a decade, the MA2375 Vacuum Tube Integrated Amplifier is a statement of uncompromising artistry. Crafted for the music purist but refined for the modern listener, the MA2375 invites you to rediscover your music with amazing clarity and beauty. Every detail, from its polished stainless-steel chassis to the warm glow of its tubes, reflects our legacy of excellence and timeless design.

PRODUCT DETAILS

Electronic Specifications

FTC Power Output Rating- 75 W

Power Output per Channel- 75 W into 4, 8, or 16 ohms

Number of Channels- 2

Rated Power Band- 20Hz to 20kHz

Total Harmonic Distortion- 0.5% maximum with both channels operating from 250 milliwatts to rated power, 20Hz to 20kHz

Dynamic Headroom- 1.2dB

Frequency Response +0,-0.5dB- 20Hz to 20kHz

Frequency Response, +0, -3dB- 10Hz to 50kHz

Sensitivity Phono- 3mV

Sensitivity High Level (Balanced / Unbalanced)- 600mV/300mV

Signal To Noise Ratio (Moving Coil)- 75dB

Signal To Noise Ratio (Moving Magnet)- 75dB

Signal To Noise Ratio (High Level)- 95dB

Input Impedance (Balanced / Unbalanced)-
44K/22K
Phono: 100 - 47kΩ; 50 - 400pF

Damping Factor- >22

Maximum Output (Balanced / Unbalanced)-
16V Balanced
8V Unbalanced

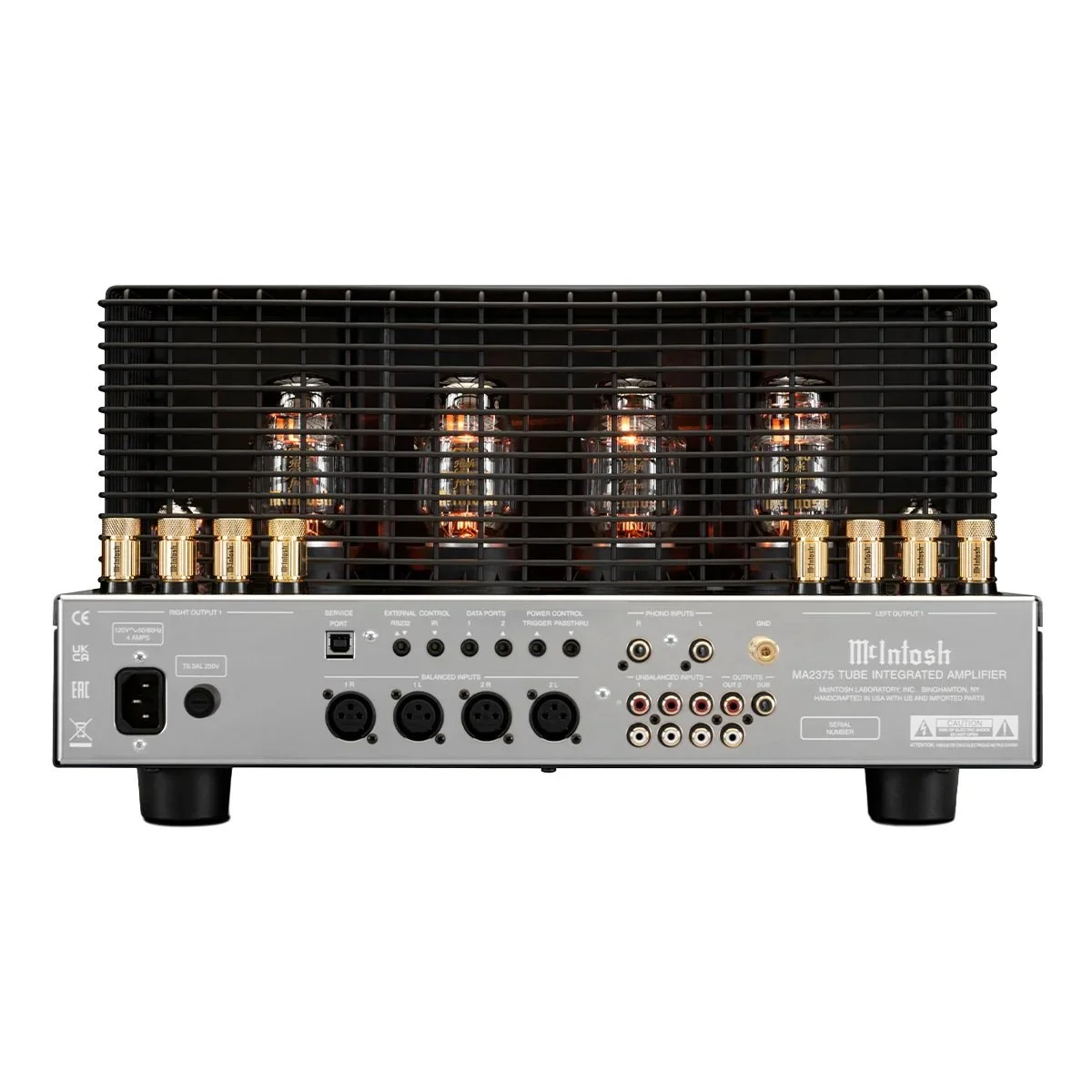

Connectivity

Balanced Input- 2

Unbalanced Input- 3

Phono Input Universal- 1 (configurable as either Moving Coil or Moving Magnet)

Unbalanced Variable Output- 1

Headphone Output- 1/4" High Drive with Headphone Crossfeed Director (HXD®)

Subwoofer Outputs- 1

Home Theater PassThru- Yes

Unbalanced Analog Connector Type- Premium gold-plated solid brass

Speaker Binding Post Type- Patented Solid Cinch™ Speaker Binding Posts

Service Port- 1

Control

Tone Controls- 5-Band

Tone Bypass and Input Assign- Yes

RS232 Control Inputs- Yes

Power Control Outputs- 1

Rear Panel Data Ports- 2

Rear Panel IR Sensor Inputs- Yes

Input Level Match- Yes

General Specifications

Vacuum Tube or Solid State- Vacuum Tube

Output Type- Unity Coupled Output Transformer

Output Meters- Yes

Dual Layer Chassis- Yes

Chassis Finish- Polished stainless steel

Power Requirement- 120V 50/60Hz, 3.6A

Standby Power Requirement- <0.25 Watts

Unit Dimensions (W x H x D)- 17-13/16" (45.2cm) x 9-15/16" (25.2cm) x 20-7/16" (51.9cm)

Unit Weight- 93 lbs (42.2 kg)
