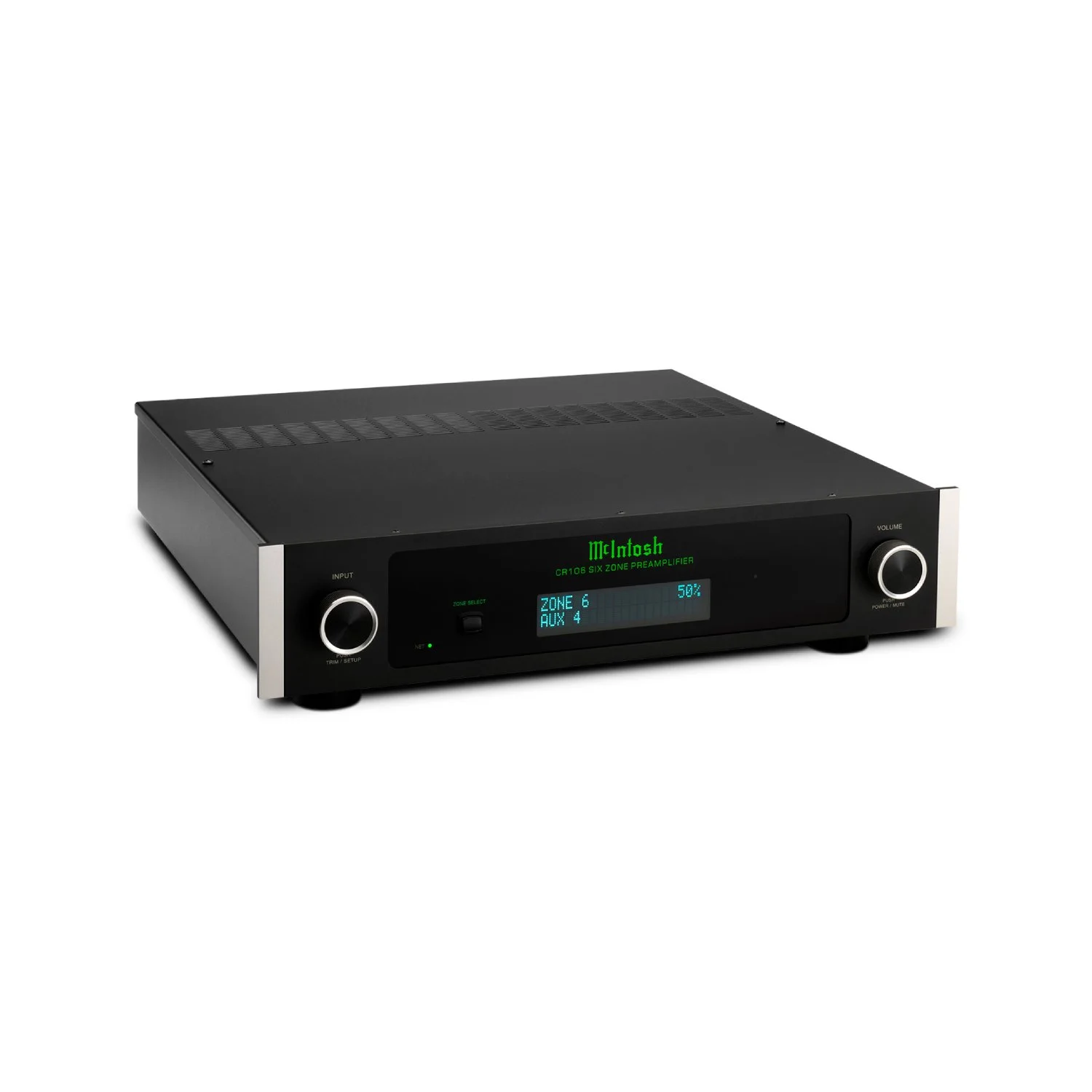

McIntosh CR106

PRODUCT DETAILS

Electronic Specifications
Number of Channels- 2 (for each of 6 independent zones)
Total Harmonic Distortion- High Level Inputs: 0.005% maximum from 20Hz to 20kHz
Frequency Response- ±0.5dB from 20Hz to 20kHz
Maximum Volts Out (Balanced / Unbalanced)- 7V RMS Unbalanced (Balanced N/A)
Sensitivity High Level (Balanced / Unbalanced)- High Level: 450mV Unbalanced (Balanced N/A)
Signal To Noise Ratio (High Level)- High Level: 96dB
Voltage Gain (High Level)- 4.5V Unbalanced
Input Impedance (Balanced / Unbalanced)- 50K ohms Unbalanced (Balanced N/A)

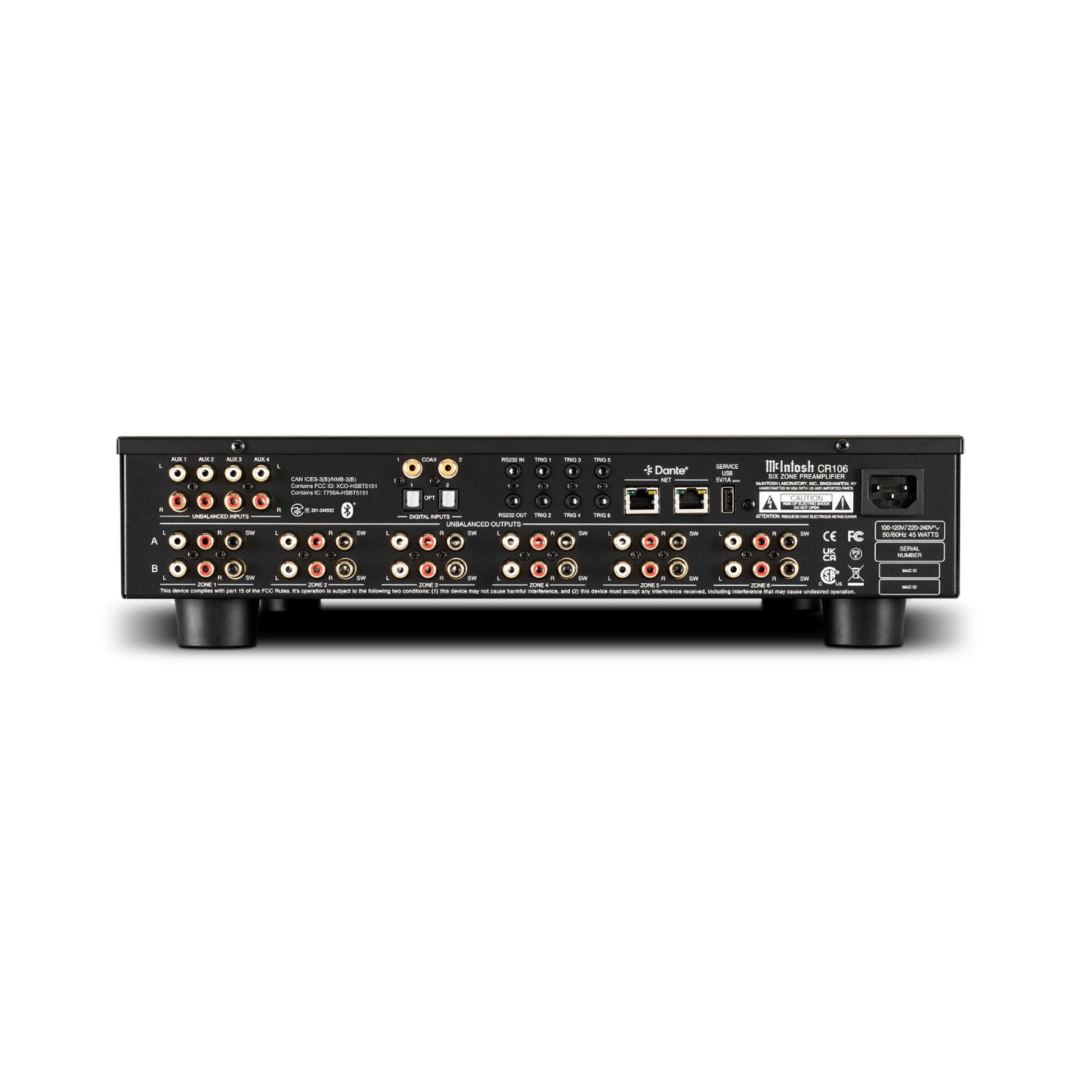

Connectivity
Unbalanced Input- 4
Digital Coaxial Input- 2
Digital Optical Input- 2
Unbalanced Variable Output- 6 Zones (each zone has 2 sets of unbalanced outputs plus 2 dedicated subwoofer outputs)
Unbalanced Analog Connector Type- Standard
Service Port- 1
Network Connection- 2

Control
Tone Controls- Bass and Treble
RS232 Control Input- 1
Power Control Output- 6

General Specifications

Multi-Chassis or Single- Single
Vacuum Tube or Solid State- Solid State
Power Consumption (On)- 45 watts
Unit Dimensions (W x H x D)- 17-1/2” (44.5cm) (with mounting brackets 19” (48.3cm)) x 4-3/8” (11.1cm) x 18-5/32” (46.1cm)
Weight- 6.8 kg
