McIntosh C22

PRODUCT DETAILS

ELECTRONIC SPECIFICATIONS

Number of Channels- 2

Total Harmonic Distortion- 0.08%

Frequency Response-
+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz

Maximum Volts Out (Balanced / Unbalanced)- 16V RMS / 8V RMS

Sensitivity High Level (Balanced / Unbalanced)- 900mV / 450mV

Sensitivity Phono (Moving Coil)- 0.45mV

Sensitivity Phono (Moving Magnet)- 4.5mV

Signal To Noise Ratio (High Level)- 100dB

Signal To Noise Ratio (Moving Coil)- 75dB

Signal To Noise Ratio (Moving Magnet)- 75dB

Voltage Gain (High Level)- 15dB

Voltage Gain (Moving Coil)- 60dB

Voltage Gain (Moving Magnet)- 40dB

Input Impedance (Balanced / Unbalanced)- 44K ohm, 22K ohm

CONNECTIVITY

Balanced Input- 2

Unbalanced Input- 3

Phono Input Moving Coil- 1 (adjustable)

Phono Input Moving Magnet- 1 (adjustable)

Balanced Variable Output- 2

Unbalanced Variable Output- 2

Headphone Output- 1/4" High Drive with Headphone Crossfeed Director (HXD®)

Unbalanced Analog Connector Type- Premium gold-plated solid brass

CONTROL

Tone Controls- Bass and Treble

Tone Bypass and Input Assign-
Tone Bypass: Yes
Input Assign: No

Power Control Output- 2 Main, 2 Switched

Rear Panel Data Port- 5

Rear Panel IR Sensor Input- Yes

GENERAL SPECIFICATIONS

Multi-Chassis or Single- Single, two-layer

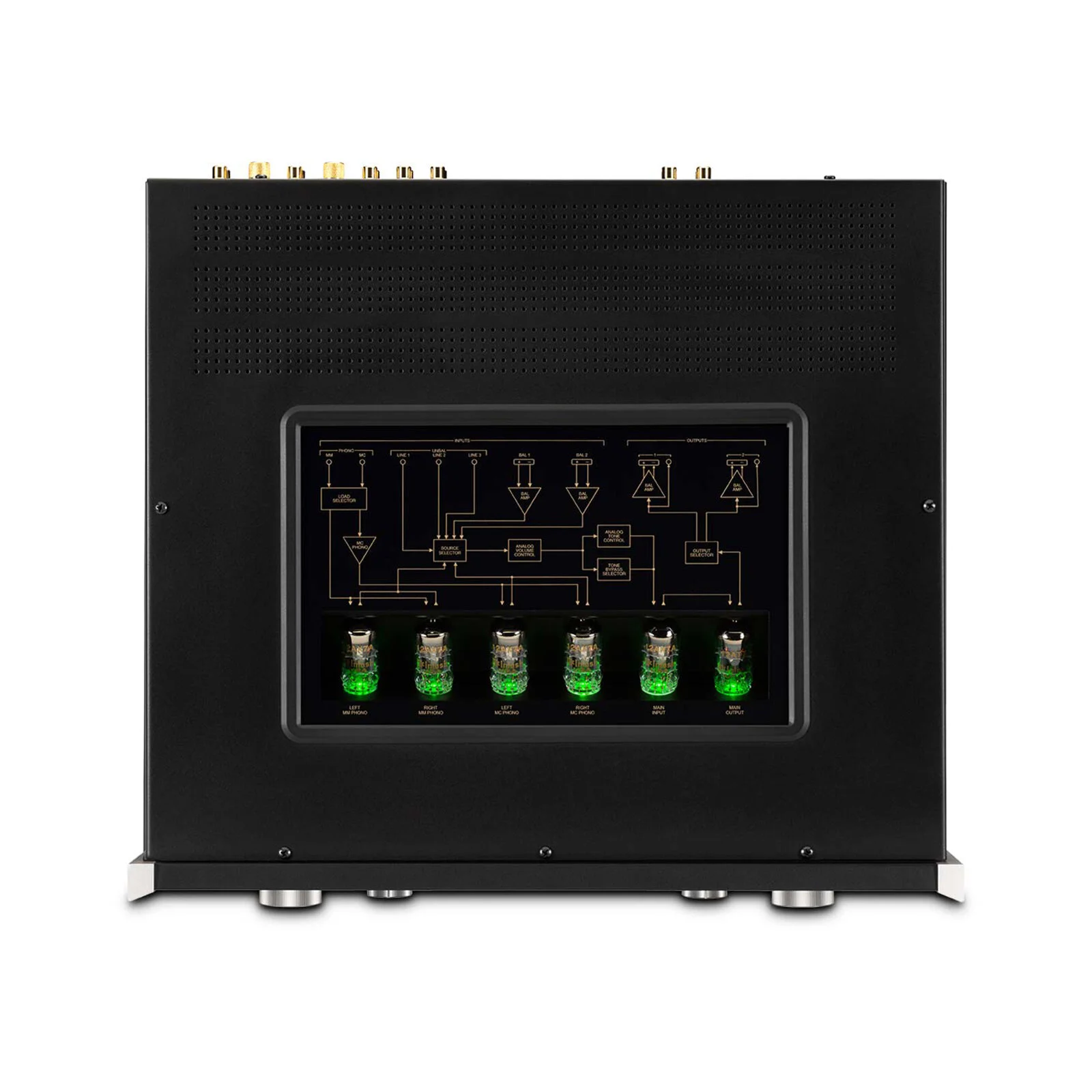

Vacuum Tube or Solid State- Vacuum Tube: (5) 12AX7A and (1) 12AT7

Power Consumption (On)- 50 Watts

WEIGHTS & DIMENSIONS

Dimensions (W x H x D)- 17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)

Weight- 25 lbs (11.3kg)

Shipping Weight- 41.4 lbs (18.8kg)
