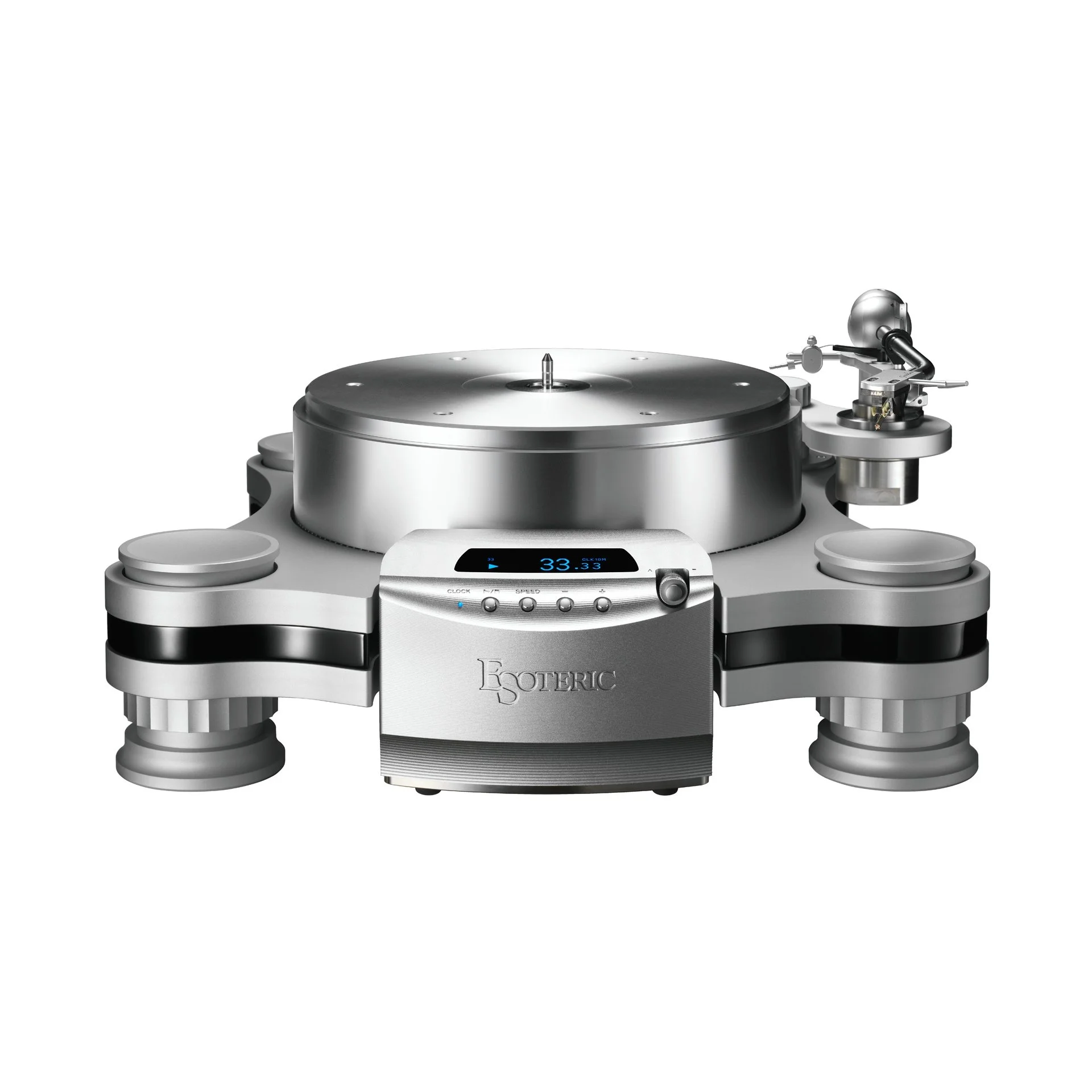

Esoteric T1

from €45,885.00

Technical Highlights

The Platter is free from any vibration.
Absolutely precise platter rotation, free from any irregularities of speed, potentially caused by mechanical contacts, such as belt, rim or motor.
Adjustability of sonic characteristics, by manually changing the distance between the platter and the driver.
No concern for the need of replacement belts.

Variant:

Technical Highlights

The Platter is free from any vibration.
Absolutely precise platter rotation, free from any irregularities of speed, potentially caused by mechanical contacts, such as belt, rim or motor.
Adjustability of sonic characteristics, by manually changing the distance between the platter and the driver.
No concern for the need of replacement belts.

Turntable section

Rotation speed-
33 ⅓ rpm
45 rpm

Rotation speed adjustment range- ±12% (0.1% step)

Wow and flutters- 0.06% or less (W.R.M.S)

Clock input

Connector- BNC × 1

Input impedance- 50Ω

Input frequency- 10MHz (±10ppm)

Input level- 0.5 to 1.0Vrms (sine wave)

Tone arm section (TA-9D)

Type- Dynamic balance

Overall length- 326mm

Effective length- 245mm

Distance between tone arm axis to spindle- 230mm

Overhang- 15 ±2mm

Tracking error- +2° to 1° 21′

Needle pressure range- 0 to 5g (0.25g step)

VTA elevation range- 0 to 10mm

Cartridge/shell balance range- 6 to 38.5g

Headshell weight- 16.45g

General

Power consumption- 8W (standby 0.4W)

Base unit
Overall dimensions (W×H×D)- 497 × 215 × 436mm / 19.6” × 8.5” × 17.2” (including protrusions)
Weight- 17kg / 37.5 lb.

Platter
Overall dimensions (Diameter × Height)- ø315.4 × 103mm / ø12.4” × 4.1”
Weight- 19kg / 41.9 lb.

Motor unit
Overall dimensions (W×H×D)- 180 × 137 × 450mm / 7.1” × 5.4” × 17.7” (including protrusions)
Weight- 9kg / 19.9 lb.

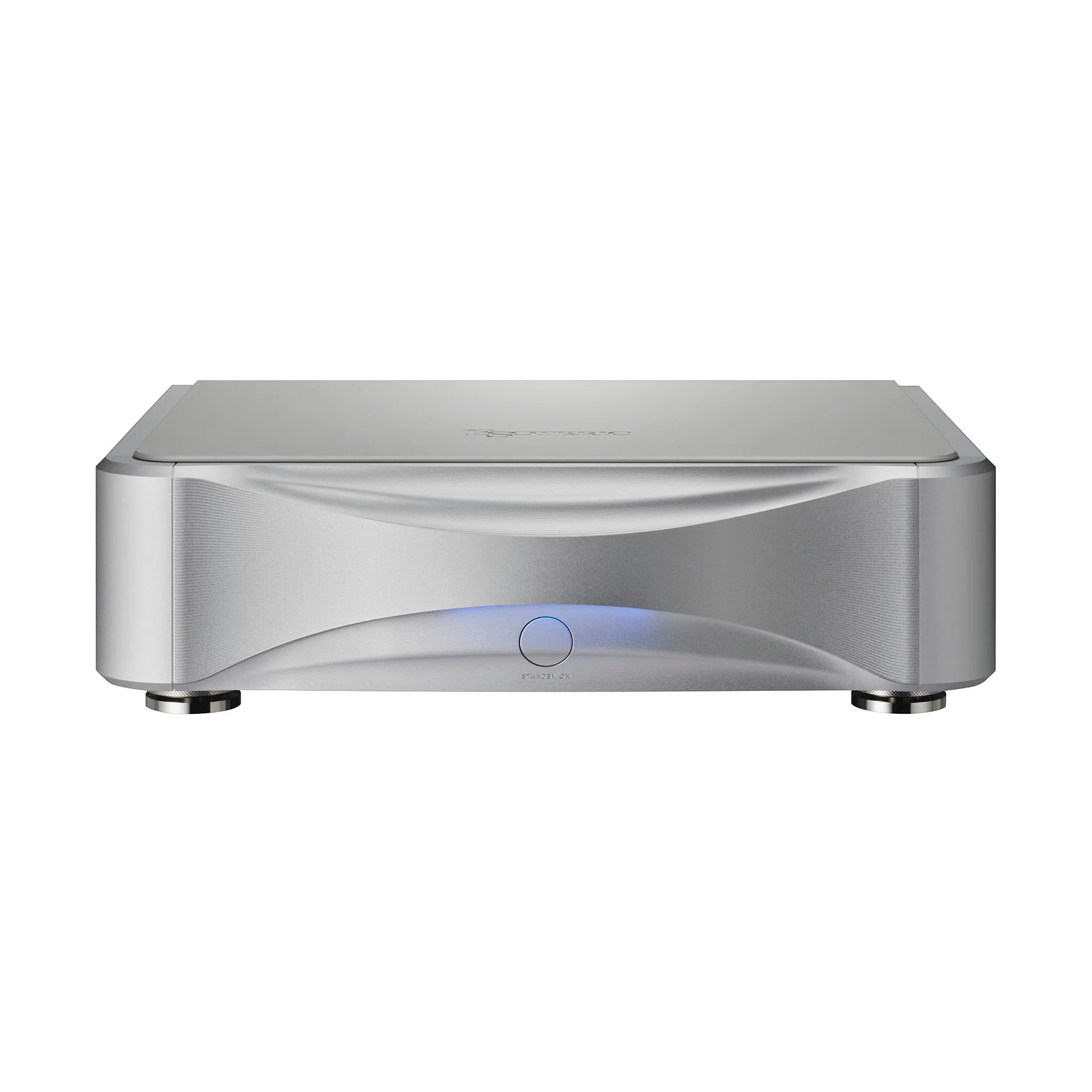

Power supply unit
Overall dimensions (W×H×D)- 445 × 131 × 447mm / 17.5” × 5.2” × 17.6” (including protrusions)
Weight- 18kg / 39.7 lb.
