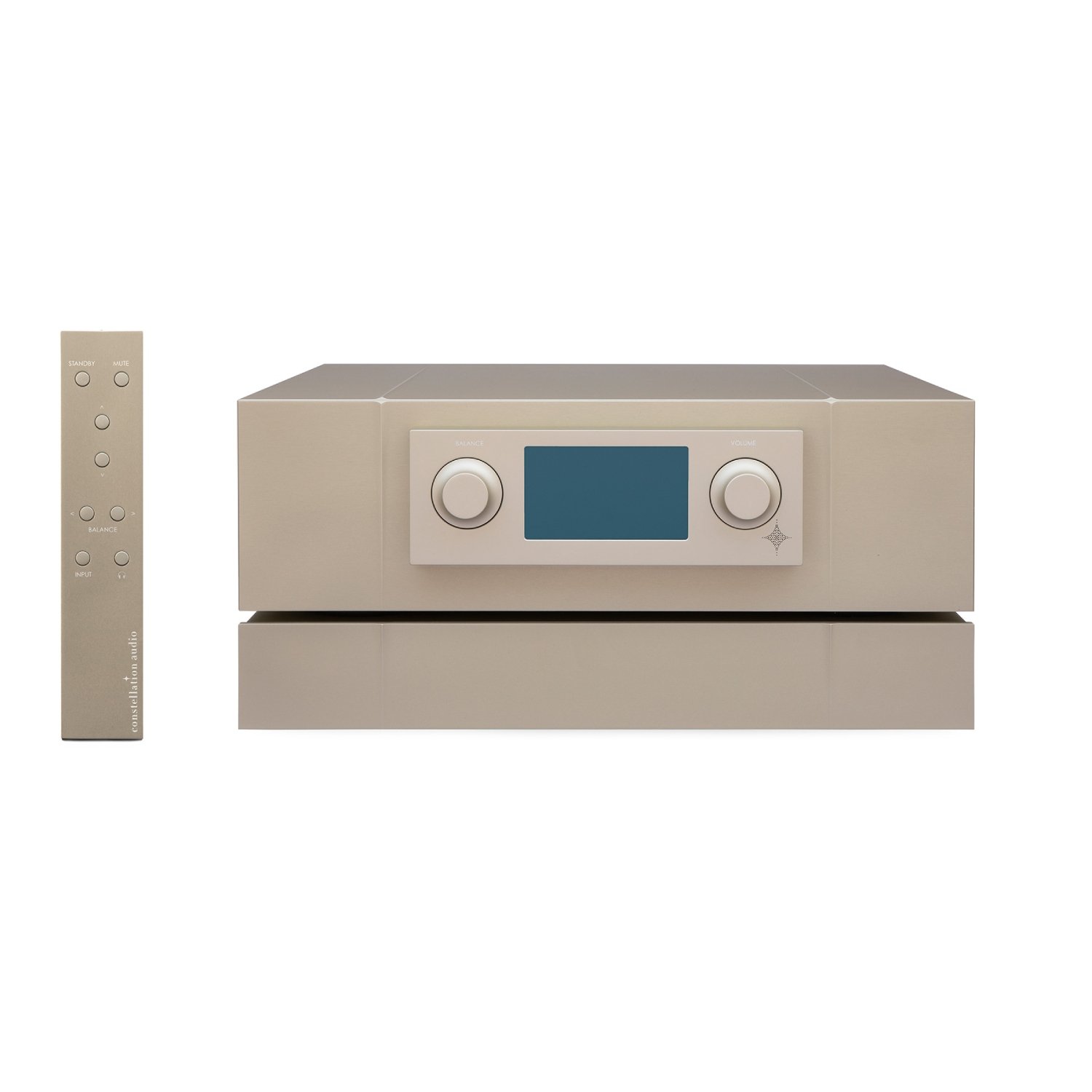

Constellation Audio Revelation 2 Preamplifer
The Revelation 2 Preamp distills the designs of our elite preamps into a component practical for audiophiles who don’t need as many inputs.
And now we’ve added C- SMPS, for cleaner, more consistent power than transformer-based power supplies can deliver. As in all of our preamps, the Revelation 2 Preamp is based on our exclusive Line Stage Gain Module, which produces truly extraordinary depth and musicality.
The Revelation 2 Preamp distills the designs of our elite preamps into a component practical for audiophiles who don’t need as many inputs.
And now we’ve added C- SMPS, for cleaner, more consistent power than transformer-based power supplies can deliver. As in all of our preamps, the Revelation 2 Preamp is based on our exclusive Line Stage Gain Module, which produces truly extraordinary depth and musicality.
The Revelation 2 Preamp distills the designs of our elite preamps into a component practical for audiophiles who don’t need as many inputs.
And now we’ve added C- SMPS, for cleaner, more consistent power than transformer-based power supplies can deliver. As in all of our preamps, the Revelation 2 Preamp is based on our exclusive Line Stage Gain Module, which produces truly extraordinary depth and musicality.
PRODUCT DETAILS
Inputs-
3 XLR Stereo
3 RCA Stereo
1 USB (for control)
Outputs-
2 XLR stereo
2 RCA stereo
12-volt trigger
THD+N-
<0.001%, 20 Hz - 20 kHz @ 2V out
<0.1%, 20 Hz - 20 kHz @ 10V out
S/N ratio- >-105 dB, A-weighted
Input impedance (balanced)- 20K Ω
Input impedance (single-ended)- 10K Ω
Output Impedance- < 50 Ω
Volume control resolution- 0.5 dB from 0dB to -90 dBFS
Weight (preamp + power supply unit)- 35 lbs./16 kg
Weight (power supply only)- 11 lbs./5 kg
Pre Dimensions- 17"/432mm X 15"/381mm X 5.5"/140mm (WDH)
Dimensions (power supply unit)- 17"/432mm X 14.5"/368mm X 2.75"/70mm (WDH)
