PRODUCT DETAILS
Audio
Supported Audio File Formats- MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported High-Quality Audio File Formats- FLAC, MQA, WAV, AIFF, MPEG-4 SLS
DSD Support- DSD256, available via future BluOS update
Native Sampling Rates- up to 192 kHz
Bit Depth- 16-24
Audio Controls & EQ- BluOS Controller App
DAC- ESS ES9039Q2M
Signal-to-Noise Ratio- -118 dB
Distortion- THD+N, 0.0007%
Software & Integrations
Operating System- BluOS
App Controller Operating System- iOS, Android, Windows, macOS
Processor- ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing- Server Message Block (SMB) up to 200,000 files
Album Art Supported- JPG, PNG
Music Services & Internet Radio-
23+ Music Services
Internet Radio
3rd-Party Integrations- AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
Control System Integrations- Crestron, Control4, RTI, ELAN, URC, Lutron
Voice Control Integrations- Amazon Alexa Skills

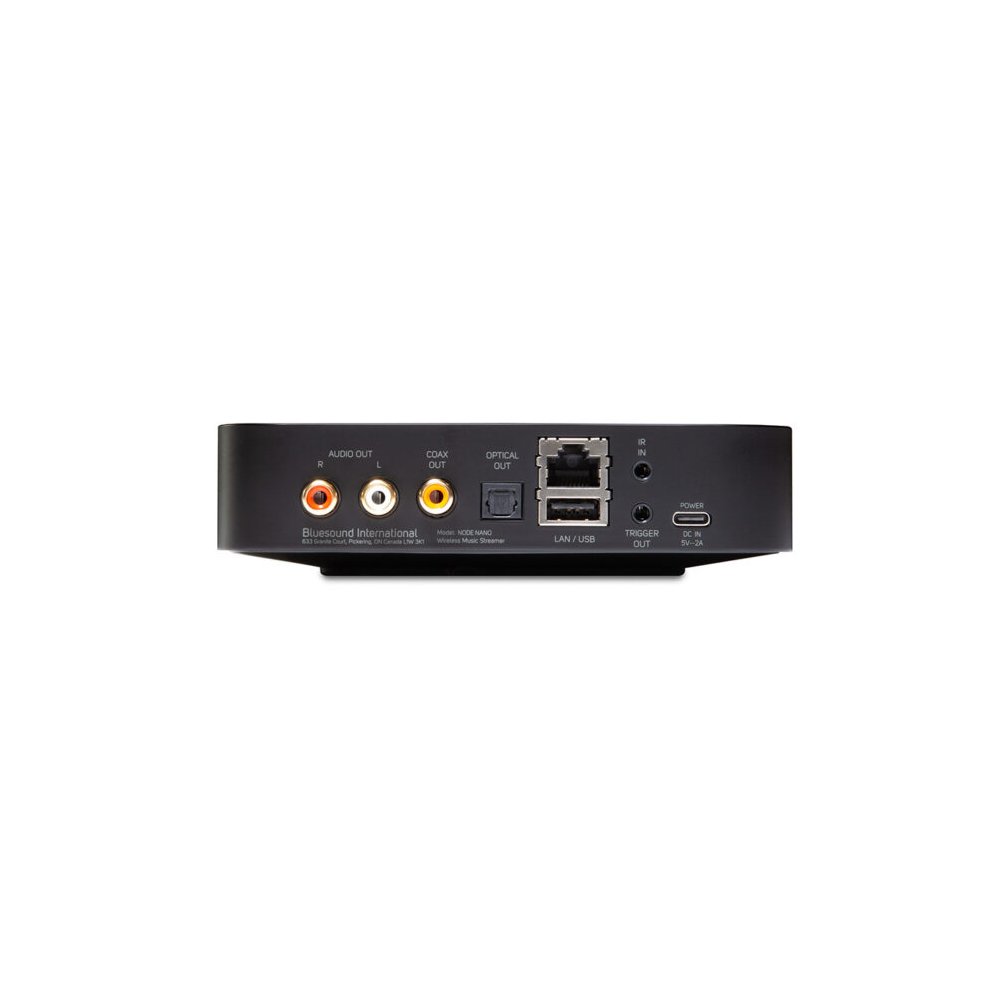

Connections
Power Supply- USB-C (5V-2A)
Ethernet/LAN- Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In- Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality- Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity- Two-Way (transmit & receive)
IR Optical Built In- IR Sensor Built In - front panel with IR Remote Learning
IR Input- 3.5mm Jack
USB IN- Type A (Fat32 Formatted) - External Storage only; Local Server Mode
Audio Output- Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Coaxial Output- RCA
Optical Output- TOSLINK digital optical
Trigger Out- 12 Volt
Headphone Output- 6.3mm Stereo; Bluetooth
Subwoofer Output- Wireless to PULSE SUB+
User Interface & Control
Status Indicator- LED
Play/Pause Button- Touch LED
Volume Control Buttons- Touch LED
Preset Buttons- Touch LED x 2
General
Finish- Black: Matte Satin Paint
Mounting- Bottom-panel keyhole slot
Storage Environment- -10°C to 50°C, 20% to 80% relative humidity
Operating Environment- 0°C to 40°C
Version- N030
Product Dimensions-
143 x 36 x 143mm (W x H x D)
5.6 x 1.4 x 5.6 in (W x H x D)*
*Non-metric measurements are approximate.
Product Weight- 0.57kg / 1.26lbs
Included Accessories-
• USB Power Supply
• 4x International Plug Adapter
• USB-C Power Cable
• Stereo RCA to RCA Cable
• Ethernet Cable
• Safety/Warranty Guide
• Quick Setup Guide
